#9108883
Aluminum Tube Nut Sleeve and Coupler, -6 AN 3/8 Inch, 2 Pair
$14.99
kit
In Stock
Add to a list
Share
Product Summary
Tube Fitting Nut and Sleeve Tube Fitting Type, -6 AN
Comes as a Kit
View Kit Components
See more details
Key Specs
| MFG. Part # | 9108883 |
| Brand | Speedway Motors |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9108883 Details
Speedway Motors 9108883 Details

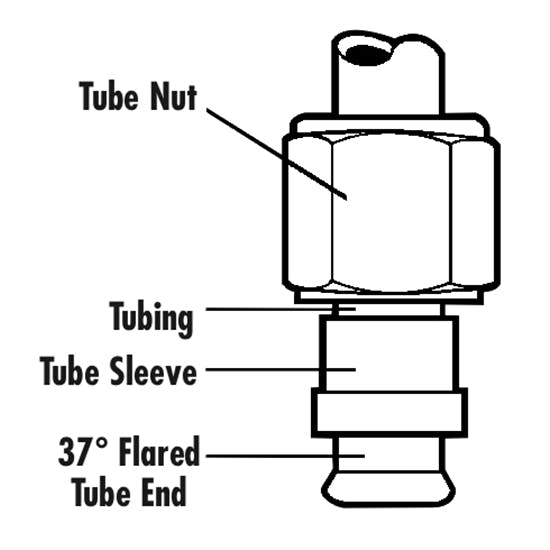

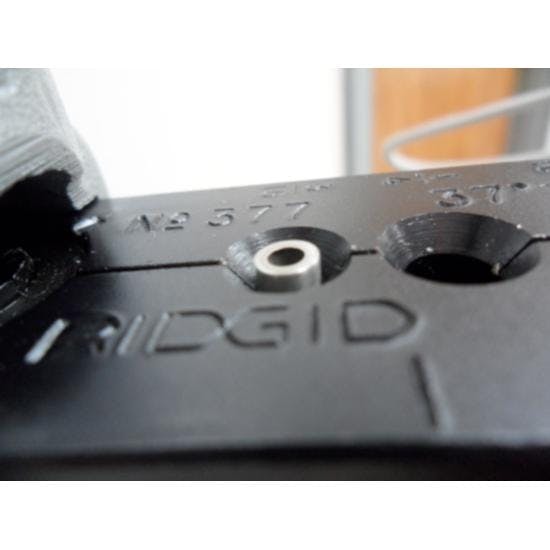

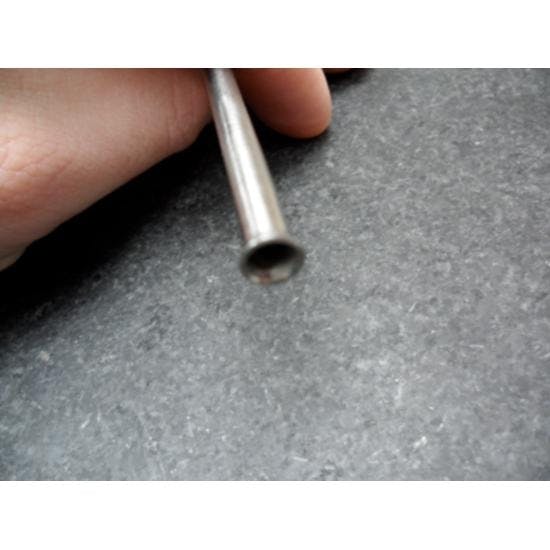

Use these tube nut couplers and tube sleeves to seal bulkhead fittings to fuel cells, oil tanks and other applications using hard line fitting situations. You need to flare the tube to 37° to match the AN fittings. Not for use with 45° flared lines.
Kit Includes

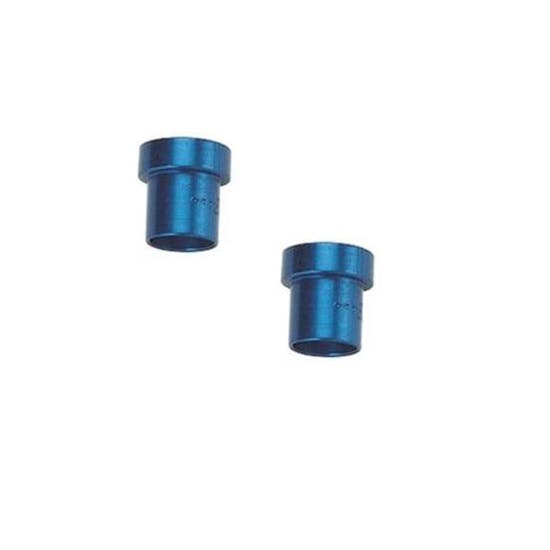

- (2) Aluminum Tube Nut Sleeve, -6 AN 3/8 Inch

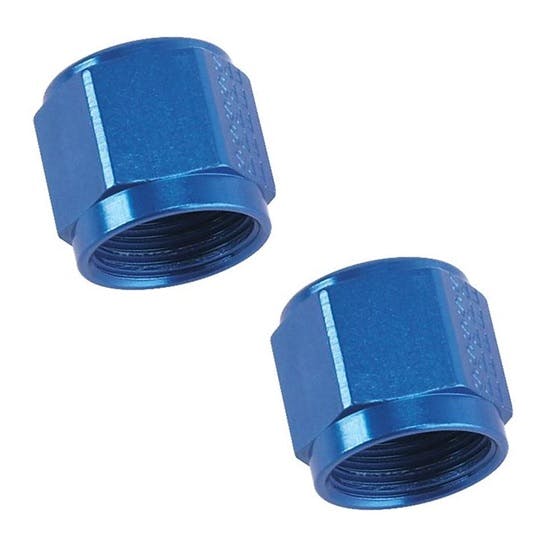

- (2) Aluminum Tube Nut Coupler, -6 AN 3/8 Inch
Charts
Speedway Motors 9108883 Specifications
Speedway Motors 9108883 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9108883 |
| Brand | Speedway Motors |
| GENERAL | |
| Tube Fitting Type | Tube Fitting Nut and Sleeve |
| AN Size | -6 AN |
| Fitting End A | -6 AN Tube sleeve |
| Fitting End B | -6 AN Tube nut |
| Hole Diameter | 0.375" |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Blue |
| Thread Pitch | 9/16"-18 |
| Angle | Straight |
| Notes | For 3/8" O.D. metal tube |
| Sold in Quantity | Kit |
