#6176067
Aluminum Tube Nut Sleeve, -10 AN 5/8 Inch
BlackTube Nut
$7.49
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Share
Key Specs
| AN Size | -10 AN |
| Fitting End A | -10 AN Tube sleeve |
| Hole Diameter | 0.625" |
| Material Type | Aluminum |
| Finish | Anodized |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 6176067 Details
Speedway Motors 6176067 Details

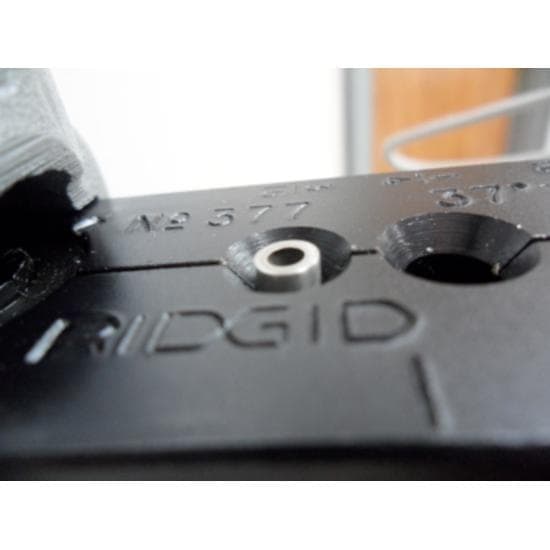

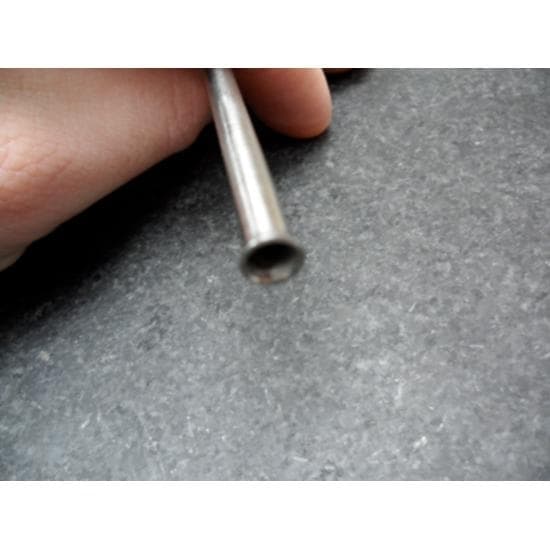

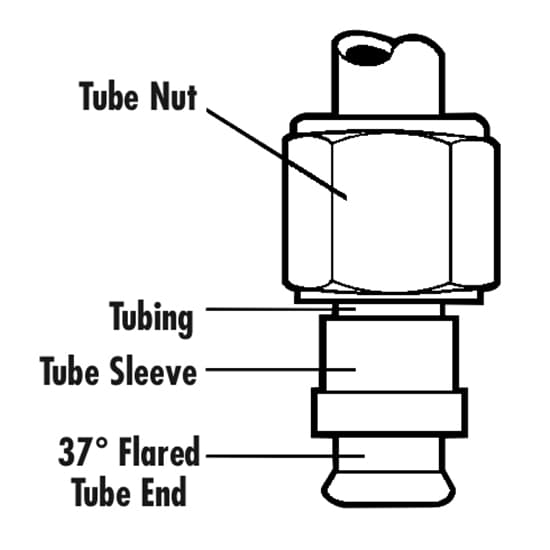

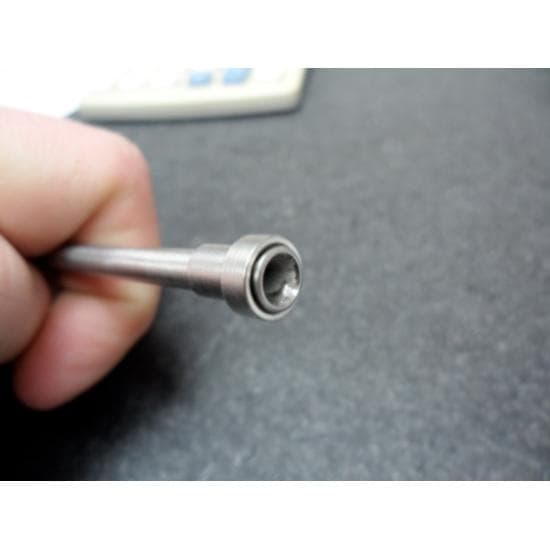

These tube nut sleeves, when used in conjunction with our tube nuts (sold seperately), allow you to attach hard lines to AN fittings. You need to flare the tube to 37° to match the AN fitting. Not for use with 45° flared lines.
Charts
Guides & Documents
Speedway Motors 6176067 Specifications
Speedway Motors 6176067 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 6176067 |
| Brand | Speedway Motors |
| AN Size | -10 AN |
| Fitting End A | -10 AN Tube sleeve |
| Hole Diameter | 0.625" |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Blue |
| GENERAL | |
| Tube Fitting Type | Tube Fitting Sleeve |
| Angle | Straight |
| Notes | For 5/8" O.D. metal tube. |
| Sold in Quantity | Each |
