Aluminum Tube Nut Coupler Fitting and Sleeve Set, -8AN, 1/2 Inch
- Seal bulkhead fittings to fuel cells, oil tanks and other applications using hard line fitting situations

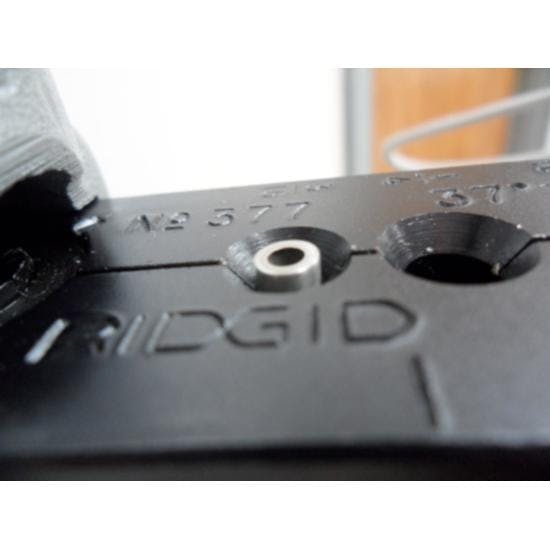

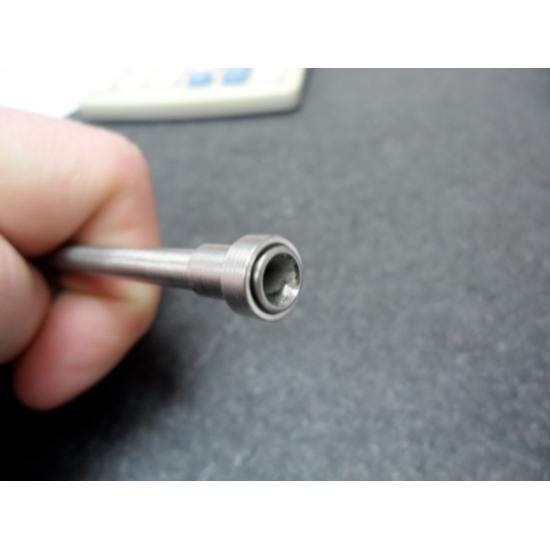

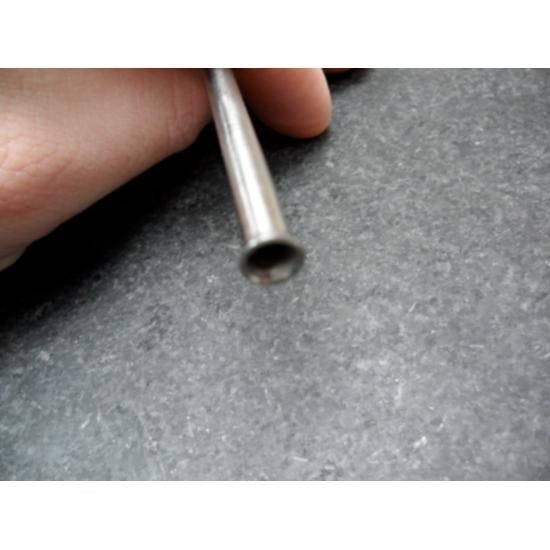

- Will need to flare the tube to 37° to match the AN fittings
- Not for use with 45° flared lines
$21.99
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Share
Product Summary
-8 AN, -8 AN Tube sleeve Fitting End A, Aluminum, Blue
- Seal bulkhead fittings to fuel cells, oil tanks and other applications using hard line fitting situations
- Will need to flare the tube to 37° to match the AN fittings
- Not for use with 45° flared lines

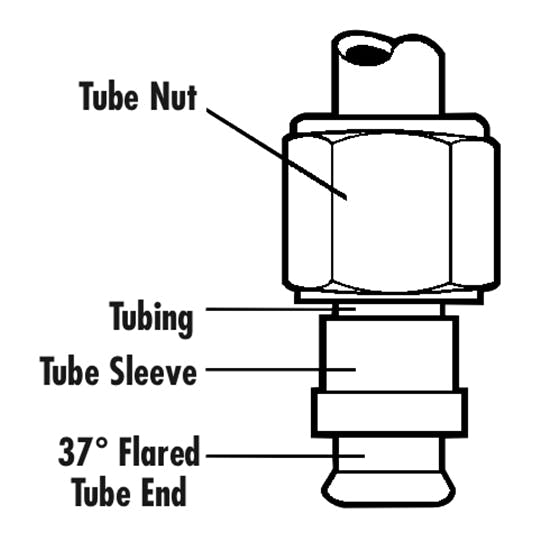

- -8 AN, 1/2" tube nuts and tube nut sleeves
- For 1/2" O.D. metal tube
Comes as a Kit
View Kit Components
Key Specs
| AN Size | -8 AN |
| Fitting End A | -8 AN Tube sleeve |
| Hole Diameter | .50" |
| Material Type | Aluminum |
| Finish | Anodized |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9108963 Details
Speedway Motors 9108963 Details
- Use these tube nut couplers in conjunction with our tube sleeves to seal bulkhead fittings to fuel cells, oil tanks and other applications using hard line fitting situations
- You need to flare the tube to 37° to match the AN fittings
- Not for use with 45° flared lines
Kit Includes:
- (1) Pair of Aluminum Tube Nut Couplers, AN8 1/2 Inch
- (1) Pair of Aluminum Tube Nut Sleeves, -8 AN 1/2 Inch
Charts
Speedway Motors 9108963 Specifications
Speedway Motors 9108963 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9108963 |
| Brand | Speedway Motors |
| AN Size | -8 AN |
| Fitting End A | -8 AN Tube sleeve |
| Hole Diameter | .50" |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Blue |
| GENERAL | |
| Thread Pitch | 3/4"-16 |
| Angle | Straight |
| Sold in Quantity | Kit |
