Aluminum Small Coilover Shock Kit, 6 Inch, 200 lbs Spring Rate

#582600D

Aluminum Small Coilover Shock Kit, 6 Inch, 200 lbs Spring Rate

Pro shocks new aluminum small body coil over shocks are 3 way adjustable
They are fitted with 2-5/8" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for your street rod
Each shock features urethane mounting bushings with both 1/2" and 5/8" mounting sleeves

Finish:

Mill Finish

Spring Rate:

$597.99

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Front and Rear Position, Polished

Pro shocks new aluminum small body coil over shocks are 3 way adjustable
They are fitted with 2-5/8" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for your street rod
Each shock features urethane mounting bushings with both 1/2" and 5/8" mounting sleeves
6” stroke kit has a suggested installed height of 14-3/4” to 15”
Comp. Length - 11.5", Ext. Length - 17.5"

Comes as a Kit

View Kit Components

See more details

Key Specs

Position	Front and Rear
Spring Rate	200 lbs.
Mounted Length	14.5"
Shock Adjustability	Triple Adjustable
Shock Type	Twin Tube

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 582600D Details

Pro shocks new aluminum small body coil over shocks are 3 way adjustable. They are fitted with 2-5/8" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for your street rod. Each shock features urethane mounting bushings with both 1/2" and 5/8" mounting sleeves. Because we’re pros in racing and performance, we understand the excellence you are looking for – as a pro – to win. PRO Shocks puts all that it has into making the product AND the service right for you. The advancement of shocks over the last decade makes choosing the right suspension product the difference between a successful season or not. We’re not here to just sell a shock to you. We’re here with the pros and the training to ensure that you get the right shock, and that you know what to do with it.

6” stroke kit has a suggested installed height of 14-3/4” to 15”

Item Details

Comp. Length - 11.5", Ext. Length - 17.5"
Spring Rate 12"-200 lbs, 1/2 Car Weight - 1450 lbs

Charts

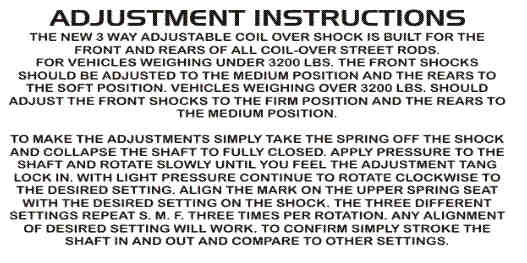

Adjustment Instructions (GIF)

Guides & Documents

Coilovers Installation Instructions (582600D)

Coil Springs Technical Information (10622200CR)

Speedway Motors 582600D Specifications

KEY SPECS
MFG. Part #	582600D
Brand	Speedway Motors
Position	Front and Rear
Spring Rate	200 lbs.
Mounted Length	14.5"
Shock Adjustability	Triple Adjustable
Shock Type	Twin Tube
Shock Body Material	Aluminum
Shock Stroke	6.00
Upper Shock Mount	Bushed Eyelet
Lower Shock Mount	Bushed Eyelet
Height Adjustable	Yes
Finish	Polished

GENERAL
Shock Body Size	Small Body
Shock Body Type	Threaded
Compressed Length Range	12.00" to 12.99"
Compressed Length	12"
Extended Length Range	17.00" to 17.99"
Extended Length	17.5"
Number of Valving Selections	3
Mounted Length Range	14" - 14 1/2"
Coilover Kit Included	Yes
Coilover Springs Included	Yes
Shaft Diameter	0.5"
Tube Length	9"
Bushing Length	1.50"
Bushing Material	Polyurethane
Tube O.D.	1.63"
Inside Diameter	2.50"
Overall Diameter	3.25"
Sold in Quantity	Kit
Adjustable	Yes
Notes	Includes 1/2" and 5/8" bushings.
