#582400D
Aluminum Small Body Coilover Shock, 4 Inch, 325 lb. Spring Rate
- Pro shocks new aluminum small body coil over shocks are 3 way adjustable
- They are fitted with 2-5/8" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for your street rod
- Each shock features urethane mounting bushings with both 1/2" and 5/8" mounting coil over sleeves
$399.99
/kit
Made to Order
This is a custom fabricated part. We estimate this item will ship on or before November 3rd.
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Front and Rear Position, Polished
- Pro shocks new aluminum small body coil over shocks are 3 way adjustable
- They are fitted with 2-5/8" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for your street rod
- Each shock features urethane mounting bushings with both 1/2" and 5/8" mounting coil over sleeves
- 4” stroke kit has a suggested installed height of 11-1/2” to 11-3/4”
- Comp. Length - 9.5", Ext. Length - 13.5"
Comes as a Kit
View Kit Components
Key Specs
| Position | Front and Rear |
| Spring Rate | 325 lbs. |
| Mounted Length | 12" |
| Shock Adjustability | Triple Adjustable |
| Shock Type | Twin Tube |
Need To Know
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 582400D Details
Speedway Motors 582400D Details
Pro shocks new aluminum small body coil over shocks are 3 way adjustable. They are fitted with 2-5/8" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for your street rod. Each shock features urethane mounting bushings with both 1/2" and 5/8" mounting coil over sleeves.
Item Details
- 4” stroke
- Kit has a suggested installed height of 11-1/2” to 11-3/4”
- 3 way adjustable
- Comp. Length - 9.5"
- Ext. Length - 13.5"
- Spring Rate 8"-325 lbs
- 1/2 Car Weight - 1450 lbs
Charts

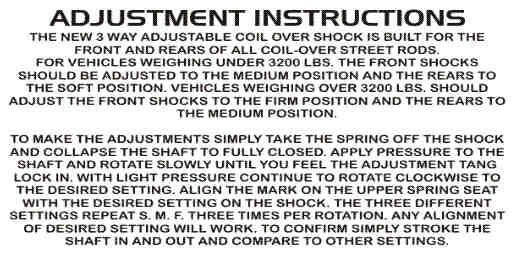

Adjustment Instructions (GIF)
Speedway Motors 582400D Specifications
Speedway Motors 582400D Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 582400D |
| Brand | Speedway Motors |
| Position | Front and Rear |
| Spring Rate | 325 lbs. |
| Mounted Length | 12" |
| Shock Adjustability | Triple Adjustable |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Stroke | 4.00 |
| Upper Shock Mount | Bushed Eyelet |
| Lower Shock Mount | Bushed Eyelet |
| Height Adjustable | Yes |
| Finish | Polished |
| GENERAL | |
| Shock Body Size | Small Body |
| Shock Body Type | Threaded |
| Compressed Length Range | 9.00" to 9.99" |
| Compressed Length | 9.5" |
| Extended Length Range | 13.00" to 13.99" |
| Extended Length | 13.5" |
| Mounted Length Range | 11 3/4" - 12 1/4" |
| Coilover Kit Included | Yes |
| Coilover Springs Included | Yes |
| Bushing Material | Polyurethane |
| Sold in Quantity | Kit |
| Adjustable | Yes |
Ratings & Reviews
Ratings & Reviews
Questions & Answers
1 Question • 1 Answer
Questions & Answers
1 Question • 1 Answer
what is the o d of the coil over spring on 582-400d coil over shocks
by 4sonstmmt
• 12 years ago
1 answer
View Answer
1 of 1 questions shown
