#1170804

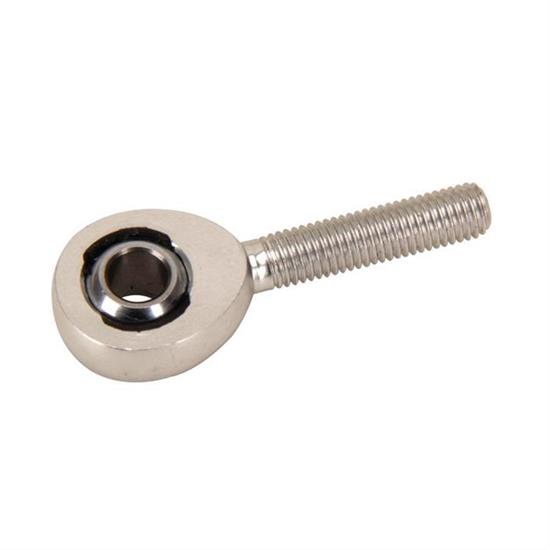

Aluminum RH Male Heim Joint Rod End, 1/4 Inch
$5.99
each
In Stock
$13.99
Save $8.00
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Aluminum, Anodized
See more details
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Aluminum |
| Hole Diameter | 0.25" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 1170804 Details
Speedway Motors 1170804 Details
Aluminum rod ends have close tolerance, 3 piece, medium duty rod end. Hard anodized 7075-T6 aerospace quality aluminum body. Heat treated, 5210 precision ground ball, Kevlar race. Self lubricating Teflon liner to seal out dirt an debris. RH threads.Applications: Designed for motorsports application where weight is critical. All of the strength & features of the precision rod ends at half of the weight.
ASSEMBLY TIP: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
ASSEMBLY TIP: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Speedway Motors 1170804 Specifications
Speedway Motors 1170804 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1170804 |
| Brand | Speedway Motors |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Aluminum |
| Hole Diameter | 0.25" |
| Rod End Style | Kevlar/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Anodized |
| Color | Clear |
| GENERAL | |
| Sold in Quantity | Each |
