#1170807L

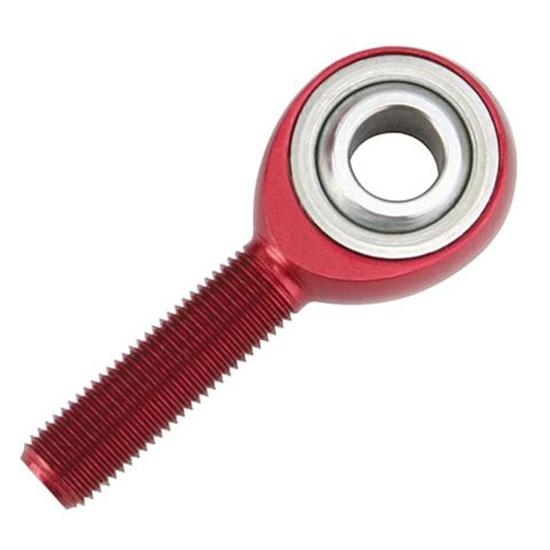

Aluminum LH Male Heim Joint Rod Ends, 7/16 Inch
$11.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 7/16"-20 |
| Material Type | Aluminum |
| Hole Diameter | 0.438" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyFK Rod Ends ALJML7 Details
FK Rod Ends ALJML7 Details
Aluminum rod ends have close tolerance, 3 piece, medium duty rod end. Hard anodized 7075-T6 aerospace quality aluminum body. Heat treated, 5210 precision ground ball, Kevlar race. Self lubricating Teflon liner to seal out dirt an debris.
Applications: Designed for motorsports application where weight is critical. All of the strength & features of the precision rod ends at half of the weight.
ASSEMBLY TIP: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Charts
Guides & Documents
FK Rod Ends ALJML7 Specifications
FK Rod Ends ALJML7 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | ALJML7 |
| Brand | FK Rod Ends |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 7/16"-20 |
| Material Type | Aluminum |
| Hole Diameter | 0.438" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Anodized |
| Color | Natural |
| Bushing Material | Kevlar |
| Jam Nut Included | No |
| GENERAL | |
| GTIN Code | 800199040708 |
| Sold in Quantity | Each |
