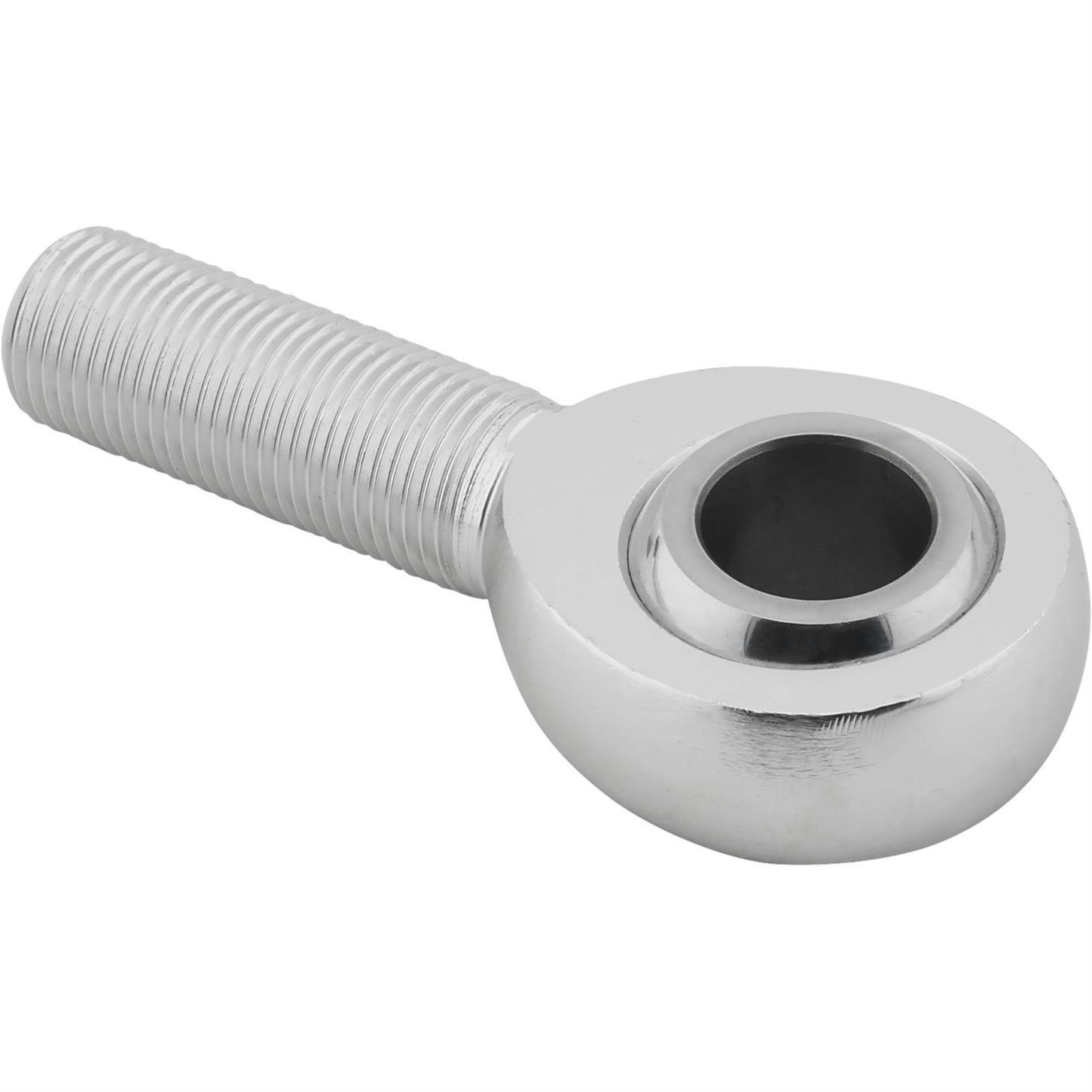

Aluminum Heim Joint Rod End, 5/8-18 RH Male
Aluminum Heim Joint Rod End, 5/8-18 RH Male
Speedway Motors

|

#1171010

Aluminum Heim Joint Rod End, 5/8-18 RH Male

  • Close-tolerance, three-piece, medium-duty rod end
  • Hard anodized 7075-T6 aerospace-quality aluminum body
  • Heat -treated, 5210 precision-ground ball
See More

Thread:

Right Hand

Left Hand

$14.49

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Male Thread Type, Aluminum, Anodized

  • Close-tolerance, three-piece, medium-duty rod end
  • Hard anodized 7075-T6 aerospace-quality aluminum body
  • Heat -treated, 5210 precision-ground ball
  • Self-lubricating Teflon liner to seal out dirt and debris
  • All of the strength and features of the precision rod ends, at half the weight
See more details

Key Specs

Thread TypeRH Male
Rod End AttachmentMale Threads/Eyelet
Thread Pitch5/8"-18
Material TypeAluminum
Hole Diameter0.625"
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 1171010 Details

Aluminum rod ends are a close tolerance, 3-piece, medium duty design. Hard anodized 7075-T6 aerospace quality aluminum body. Heat treated, 5210 precision ground ball. Self lubricating Teflon liner seals out dirt and debris.

Applications: Designed for motorsports application where weight is critical. All of the strength & features of the Precision rod ends at half of the weight.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

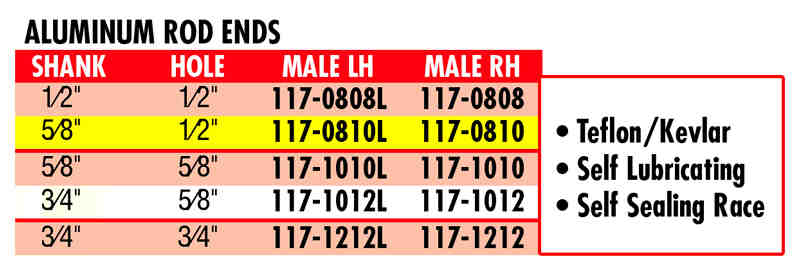

Charts

Speedway Motors 1171010 Specifications

KEY SPECS
MFG. Part #1171010
BrandSpeedway Motors
Thread TypeRH Male
Rod End AttachmentMale Threads/Eyelet
Thread Pitch5/8"-18
Material TypeAluminum
Hole Diameter0.625"
Rod End StylePTFE Lined
Rod End Construction3-piece
Grease FittingNo
FinishAnodized
ColorNatural
Bushing MaterialPTFE
Jam Nut IncludedNo
GENERAL
Sold in QuantityEach

Questions & Answers

2 Questions • 2 Answers

Is there a spec sheet for this part? Need length of thread.

by Jeff Feagin

• 8 years ago

1 answer

View Answer

What is the depth from the top of the bolt hole to the bottom? This is for a custom job going into a clevis bracket.

by Fread

• 12 years ago

1 answer

View Answer
