#1170808
Aluminum Heim Joint Rod End, 1/2-20 RH Male
- Close-tolerance, three-piece, medium-duty rod end
- Hard anodized 7075-T6 aerospace-quality aluminum body
- Heat -treated, 5210 precision-ground ball, Kevlar race
$14.49
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Aluminum, Anodized
- Close-tolerance, three-piece, medium-duty rod end
- Hard anodized 7075-T6 aerospace-quality aluminum body
- Heat -treated, 5210 precision-ground ball, Kevlar race
- Self-lubricating Teflon liner to seal out dirt and debris
- All of the strength and features of the precision rod ends, at half the weight
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/2"-20 |
| Material Type | Aluminum |
| Hole Diameter | 0.5" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 1170808 Details
Speedway Motors 1170808 Details
Aluminum rod ends are a close tolerance, 3-piece, medium duty design. Hard anodized 7075-T6 aerospace quality aluminum body. Heat treated, 5210 precision ground ball, Kevlar race. Self lubricating Teflon liner seals out dirt and debris.
Applications: Designed for motorsports application where weight is critical. All of the strength & features of the Precision rod ends at half of the weight.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Item Details
OD - 1.315"Height - 3.100"
Shaft Length - 1.580"
Charts

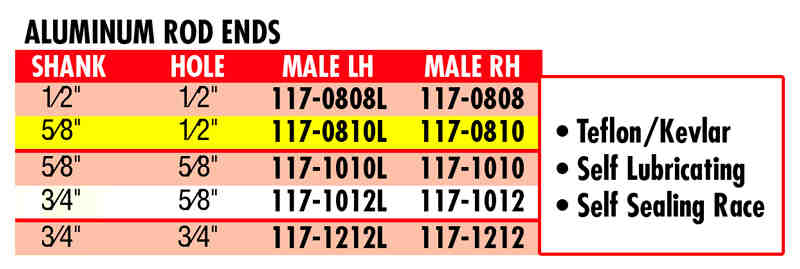

Aluminum Rod End Chart (GIF)
Guides & Documents
Speedway Motors 1170808 Specifications
Speedway Motors 1170808 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1170808 |
| Brand | Speedway Motors |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/2"-20 |
| Material Type | Aluminum |
| Hole Diameter | 0.5" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Anodized |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Sold in Quantity | Each |
Ratings & Reviews
5
2 Reviews
The product is widely appreciated for its high quality and reasonable pricing. Customers note that it's the perfect solution, serving its specific purpose effortlessly. It displays superior performance, drastically reducing downtime, specifically highlighted by a customer whose son returned to track swiftly. Its prominent features are its quality and practicality, outshining competitors.
Ratings & Reviews
5
2 Reviews
The product is widely appreciated for its high quality and reasonable pricing. Customers note that it's the perfect solution, serving its specific purpose effortlessly. It displays superior performance, drastically reducing downtime, specifically highlighted by a customer whose son returned to track swiftly. Its prominent features are its quality and practicality, outshining competitors.
5
2 reviews
5
2
4
0
3
0
2
0
1
0
Filter by Ratings
Good quality
5.0
4 years ago
Randy
Sahuarita Arizona
Verified
Good quality and reasonably priced my original perceptions got it faster than I had expected
Would Recommend
Good deal for the right part
5.0
8 years ago
Les
Kingsport TN
Verified
Good deal for the right part.got my son back on the track in no time
Would Recommend
Showing 2 of 2 reviews
Questions & Answers
1 Question • 1 Answer
Questions & Answers
1 Question • 1 Answer
What is the outter diameter of the total heim.
by
• 15 years ago
1 answer
View Answer
1 of 1 questions shown
