Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings

Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings

Universal Fit, 0.380" Hose ID, 0.375" Tube O.D., -40° to +200° F Temp. Range, Rubber/Aluminum

0 Reviews | 0 Answered Questions
On Backorder
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
X
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Aluminum Fuel Line Installation Kit, -6AN Red/Blue Fittings
Zoomed In Image
We estimate this item will ship on or before August 30th.
Part # 9109502
Save 5%
$71.99
$75.91
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Use easy-to-flare and bend tubing with included AN fittings, rubber flex line, and line clamps for a quick and easy fuel line solution!
  • Aluminum material is easily bent by hand to the shape needed for your application - works great as AN hard line
  • Lightweight aluminum -6AN hose ends are completely reusable, and interchangeable
  • 37° angled sealing surface guarantees a positive anti-leak seal
  • Help prevent flex line cracks with installation of included rubber coated clamps and rubber fuel line on each end of hard line

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

MFG. Part #:
9109502
Hose ID:
0.380"
Hose OD:
0.630"
Tube O.D.:
0.375"
Temp. Range:
-40° to +200° F
Material Type:
Rubber/Aluminum
Hose Size:
-6 AN
Outer Braid:
No Outer Braid
Sold in Quantity:
Kit
Burst Pressure:
150 psi
Fuel Line Type:
Hard Tube
AN Size:
-6 AN
Clamps Included:
Yes
Fittings Included:
Yes
Fuel Pump Included:
No
Fuel Line Included:
Yes

Info

Easy-to-flare and bend tubing works great as AN hard line and will save weight and money. Use with the included AN fittings, rubber flex line, and line clamps for a quick and easy fuel line solution!

Kit Includes:

  • (1) Speedway 3/8 OD Aluminum Hard Fuel Line/Tubing, 10 Foot Roll
  • (1) 3ft, Black Push-On Hose, AN6 Fuel Line Gas/Diesel 300 PSI
  • (2) Full Flow Swivel Hose End Fitting, Straight, Red/Blue, -6 AN
  • (2) Russell 639210 3/8 Inch Tubing to -6 AN Male Flare Adapter
  • (1) Earls 750006ERL Vapor Guard Screw Type 3/8 Hose Clamp 5/Pack
  • (1) Insulated Line/Tubing Mount Clamps, 3/8 Inch, Bag of 10
  • (1) Insulated Line/Tubing Mount Clamps, 5/8 Inch, Bag of 10



Speedway 3/8 OD Aluminum Hard Fuel Line/Tubing

  • As featured on Classic Truck’s Week to Wicked. Watch the transformation here!
  • Easy-to-flare and bend tubing works great as AN hard line
  • Use with tube nut couplers, sleeves and 37° flared AN fittings
  • Rated to 250 psi
  • Not recommended for high pressure (brake) applications
  • 10 ft. roll included

Learn more about flaring hard line and how to select proper automotive fittings by reading our tech article, The Principles of Automotive Fittings.



3ft, Black Push-On Hose, AN6 Fuel Line Gas/Diesel 300 PSI

  • AN6 black push-on hose
  • Ideal for fuel line applications only - NOT suited for oil or water use exceeding temperatures of 200° F.
  • Working Temp:  -40 to +200 degrees F
  • Max Pressure:  300 psi
  • Compatible with gasoline & diesel fuels
  • 3 foot length included
  • When using at temp and pressure at the high end of the parameter, hose clamps should be utilized
  • *Not ethanol compatible

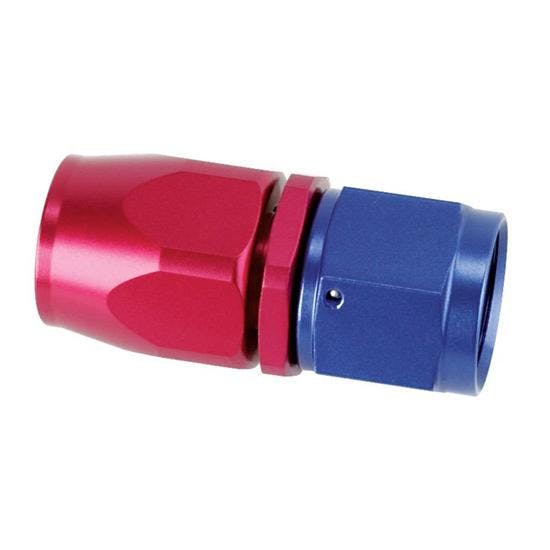

Full Flow Swivel Hose End Fitting, Straight, Red/Blue, -6 AN

  • Revolutionary one-piece fitting design offers motorsport enthusiasts uncompromised quality and assurance that they are using the highest performing components available
  • These compression-style fittings are easier to assemble and offer significantly better seal integrity than out-dated cutter-style fittings
  • Manufactured from the highest quality aluminum and are then blue and red anodized to give them a new high performance look
  • These full flow hose ends use a swivel head design, allowing the fitting to rotate as you are tightening or assembling the hose
  • -6 AN
  • Straight
  • Lightweight aluminum hose ends are completely reusable, and interchangeable
  • 37° angled sealing surface guarantees a positive anti-leak seal
  • Available in a Red/Blue corrosion resistant finish



Russell 639210 3/8 Inch Tubing to -6 AN Male Flare Adapter

  • Tubing to AN flare adapters are for use with aluminum tubing only (not steel tubing)
  • Connects 3/8" aluminum tube to -6 AN adapters
  • Unique crimp design eliminates tube flaring
  • Not for use with fuel injection



Earls 750006ERL Vapor Guard Screw Type 3/8 Hose Clamps

  • Vapor Guard hose clamps provide easy assembly of hose to hose ends
  • Stainless steel construction
  • 3/8" diameter
  • Screw Style
  • Set of 5 included



Insulated Line/Tubing Mount Clamps

  • Use these rubber coated fuel line tube clamps to finish your plumbing job
  • Tube clamps are made from zinc plated steel
  • Easy to work with, durable, and corrosion resistant
  • 2 sizes included: 3/8" and 5/8"
  • 10 clamps per package/20 total clamps included



Notes

The main issue when dealing with aluminum tubing (or any aluminum for that matter) is that it “work hardens” when it flexes, which can lead to cracks. It is important that the hard line is isolated from vibration and movement.

Clamp the tubing securely with rubber coated clamps (Adel clamps) and use bulkhead fittings where the tubing attaches to the flex line. Never run the tubing directly to the engine without a flexible hose section. If installed properly, aluminum tubing is safe and durable.



Charts

Hose Fitting Sizing Chart (GIF)

Full Swivel Application Chart (GIF)



Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Speedway 3/8 OD Aluminum Hard Fuel Line/Tubing, 10 Foot Roll
    Qty x 1
  • 3ft Black Push-On Hose, AN6 Fuel Line Gas/Diesel
    Qty x 1
  • Earls 750006ERL Vapor Guard Screw Type 3/8 Hose Clamp 5/Pack
    Qty x 1
  • Insulated Line/Tubing Mount Clamps, 3/8 Inch, Bag of 10
    Qty x 1
  • Insulated Line/Tubing Mount Clamps, 5/8 Inch, Bag of 10
    Qty x 1
  • Russell 639210 3/8 Inch Tubing to -6 AN Male Flare Adapter
    Qty x 2
  • Speedway Full Flow Swivel Hose End Fitting, Straight, Red/Blue, -6 AN
    Qty x 2
