Aluminum Fuel Line Installation Kit, -6AN Anodized Black Fittings

#9109499

Aluminum Fuel Line Installation Kit, -6AN Anodized Black Fittings

Name: Aluminum Fuel Line Installation Kit, -6AN Anodized Black Fittings
Brand: Speedway Motors
SKU: 9109499
Price: 108.99 USD
Availability: InStock
Rating: 4.7 (3 reviews)

3 Reviews

Ask a Question

Use easy-to-flare and bend tubing with included AN fittings, rubber flex line, and line clamps for a quick and easy fuel line solution!
Aluminum material is easily bent by hand to the shape needed for your application - works great as AN hard line
Lightweight aluminum -6AN hose ends are completely reusable, and interchangeable

$108.99

/kit

In Stock

$110.29

Save $1.30

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 0.380" Hose ID, 0.375" Tube O.D., -6 AN

Use easy-to-flare and bend tubing with included AN fittings, rubber flex line, and line clamps for a quick and easy fuel line solution!
Aluminum material is easily bent by hand to the shape needed for your application - works great as AN hard line
Lightweight aluminum -6AN hose ends are completely reusable, and interchangeable
37° angled sealing surface guarantees a positive anti-leak seal
Help prevent flex line cracks with installation of included rubber coated clamps and rubber fuel line on each end of hard line

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	9109499
Hose OD	0.630"
Tube O.D.	0.375"
Material Type	Rubber/Aluminum
Hose Size	-6 AN

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9109499 Details

Easy-to-flare and bend tubing works great as AN hard line and will save weight and money. Use with the included AN fittings, rubber flex line, and line clamps for a quick and easy fuel line solution!

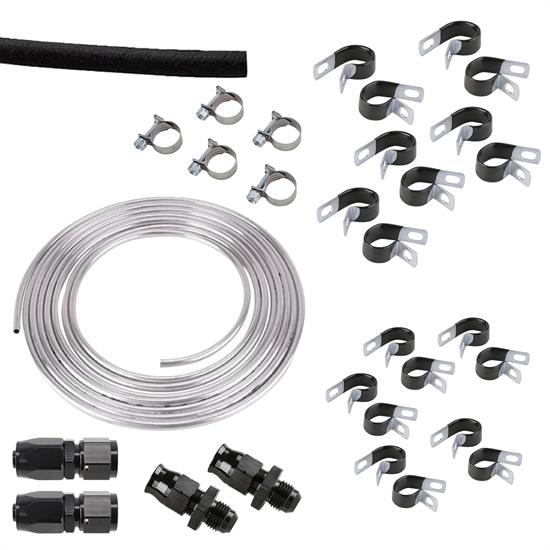

Kit Includes:

(1) Speedway 3/8 OD Aluminum Hard Fuel Line/Tubing, 10 Foot Roll
(1) 3ft, Black Push-On Hose, AN6 Fuel Line Gas/Diesel 300 PSI
(2) Full Flow Swivel Hose End Fitting, Straight, Anodized, -6 AN
(2) Mr Gasket 892006-BL Tube Adapter -6 AN Male to 3/8 Tubing
(1) Earls 750006ERL Vapor Guard Screw Type 3/8 Hose Clamp 5/Pack
(1) Insulated Line/Tubing Mount Clamps, 3/8 Inch, Bag of 10
(1) Insulated Line/Tubing Mount Clamps, 5/8 Inch, Bag of 10

Speedway 3/8 OD Aluminum Hard Fuel Line/Tubing

As featured on Classic Truck’s Week to Wicked. Watch the transformation here!
Easy-to-flare and bend tubing works great as AN hard line
Use with tube nut couplers, sleeves and 37° flared AN fittings
Rated to 250 psi
Not recommended for high pressure (brake) applications
10 ft. roll included

Learn more about flaring hard line and how to select proper automotive fittings by reading our tech article, The Principles of Automotive Fittings.

3ft, Black Push-On Hose, AN6 Fuel Line Gas/Diesel 300 PSI

AN6 black push-on hose
Ideal for fuel line applications only - NOT suited for oil or water use exceeding temperatures of 200° F.
Working Temp: -40 to +200 degrees F
Max Pressure: 300 psi
Compatible with gasoline & diesel fuels
3 foot length included
When using at temp and pressure at the high end of the parameter, hose clamps should be utilized
*Not ethanol compatible

Full Flow Swivel Hose End Fitting, Straight, Anodized, -6 AN

Revolutionary one-piece fitting design offers motorsport enthusiasts uncompromised quality and assurance that they are using the highest performing components available
These compression-style fittings are easier to assemble and offer significantly better seal integrity than out-dated cutter-style fittings
Manufactured from the highest quality aluminum and are then black anodized to give them a new sleek look
These full flow hose ends use a swivel head design, allowing the fitting to rotate as you are tightening or assembling the hose
-6 AN female to push-on style adapter
Straight
Lightweight aluminum hose ends are completely reusable, and interchangeable
37° angled sealing surface guarantees a positive anti-leak seal
Works great for custom fuel lines
Available in a Black corrosion resistant finish

Mr Gasket 892006-BL Tube Adapter -6 AN Male to 3/8 Tubing

Ideal for adapting hardline to AN Male Flare
Tube Adapters – Adapts AN Male Flare to Hardline Tubing
Ideal for Use w/ All Types of Hardline Tubing - Steel, Stainless Steel, and Easy Form (copper-nickel alloy)
Tube Adapters – Black Anodized Finish
Material: 6061 Aluminum

Earls 750006ERL Vapor Guard Screw Type 3/8 Hose Clamps

Vapor Guard hose clamps provide easy assembly of hose to hose ends
Stainless steel construction
3/8" diameter
Screw Style
Set of 5 included

Insulated Line/Tubing Mount Clamps

Use these rubber coated fuel line tube clamps to finish your plumbing job
Tube clamps are made from zinc plated steel
Easy to work with, durable, and corrosion resistant
2 sizes included: 3/8" and 5/8"
10 clamps per package/20 total clamps included

Charts

Full Swivel Application Chart (GIF)

Hose Fitting Sizing Chart (GIF)

Installation Instructions (PDF)

Guides & Documents

Fuel Lines Sizing Chart (9109499)

AN Hoses Sizing Chart (620106)

AN Hose Ends Sizing Chart (62010021)

Speedway Motors 9109499 Specifications

KEY SPECS
MFG. Part #	9109499
Brand	Speedway Motors
Hose OD	0.630"
Tube O.D.	0.375"
Material Type	Rubber/Aluminum
Hose Size	-6 AN

GENERAL
Hose ID	0.380"
Temp. Range	-40° to +200° F
Outer Braid	No Outer Braid
Sold in Quantity	Kit
Burst Pressure	150 psi
Fuel Line Type	Hard Tube
AN Size	-6 AN
Clamps Included	Yes
Fittings Included	Yes
Fuel Pump Included	No
Fuel Line Included	Yes

Ratings & Reviews

4.7

3 Reviews

Overall Assessment

Customers appreciated the Aluminum Fuel Line Kit for its quality and great pricing. Noted for its practicality, users counted on this kit for various projects, including installing electric pumps on vintage cars. The components exceeded expectations, leading customers to express the intent to purchase again. Comparative statements suggest our product outperforms similar options in its category. No safety issues were reported, underlining the product's reliability. Its usability and high-grade material stood out, positioning it as a top choice among users.

Write A Review

4.7

3 reviews

Filter by Ratings

Sort Reviews

Yes I will if need another

4.0

3 months ago

Slim

Estes Park Co

Verified

Everything is in one package

Would Recommend

Aluminum Fuel Line Kit

5.0

11 months ago

Sunny

Caldwell, ID

Verified

Nice kit at a great price.

Would Recommend

Aluminum fuel line.? I will buy this again

5.0

4 years ago

TinkerRonn

San Lorenzo, California

Verified

I needed to put an electric pump back near the tank on my69 Malibu. Worked out better than I was expecting.. I still need to run the smaller return line yet but no prayers are needed. Would use the same on my Model A.

Would Recommend

Showing 3 of 3 reviews

Questions & Answers

Be the first to ask a question.
