#582601A
$500.99
/kit
Made to Order
This is a custom fabricated part. We estimate this item will ship on or before December 11th.
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle

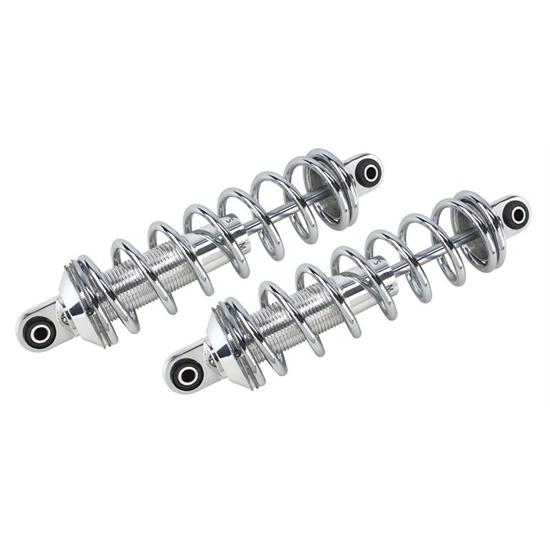

Universal Fit, Front and Rear Position, Polished
Comes as a Kit
View Kit Components
| Position | Front and Rear |
| Spring Rate | 95 lbs. |
| Mounted Length | 14.5" |
| Shock Adjustability | Triple Adjustable |
| Shock Type | Twin Tube |
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyPro shocks new aluminum small body coil over shocks are 3 way adjustable. They are fitted with 2-5/8" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for your street rod. Each shock features urethane mounting bushings with both 1/2" and 5/8" mounting sleeves. Because we’re pros in racing and performance, we understand the excellence you are looking for – as a pro – to win. PRO Shocks puts all that it has into making the product AND the service right for you. The advancement of shocks over the last decade makes choosing the right suspension product the difference between a successful season or not. We’re not here to just sell a shock to you. We’re here with the pros and the training to ensure that you get the right shock, and that you know what to do with it.
6” stroke kit has a suggested installed height of 14-3/4” to 15”
Comp. Length - 11.5", Ext. Length - 17.5"
Spring Rate 12"-95 lbs, 1/2 Car Weight - 950 lbs
Charts

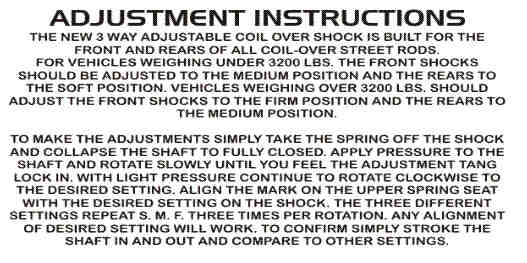

Adjustment Instructions (GIF)
| KEY SPECS | |
|---|---|
| MFG. Part # | 582601A |
| Brand | Speedway Motors |
| Position | Front and Rear |
| Spring Rate | 95 lbs. |
| Mounted Length | 14.5" |
| Shock Adjustability | Triple Adjustable |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Stroke | 5.50 |
| Upper Shock Mount | Bushed Eyelet |
| Lower Shock Mount | Bushed Eyelet |
| Height Adjustable | Yes |
| Finish | Polished |
| GENERAL | |
| Shock Body Size | Small Body |
| Shock Body Type | Threaded |
| Compressed Length Range | 12.00" to 12.99" |
| Compressed Length | 12" |
| Extended Length Range | 17.00" to 17.99" |
| Extended Length | 17.5" |
| Mounted Length Range | 14" - 14 1/2" |
| Coilover Kit Included | Yes |
| Coilover Springs Included | Yes |
| Thread Length | 6.75" |
| Shaft Diameter | 0.5" |
| Bushing Material | Polyurethane |
| Upper Mount O.D. | 2.5" |
| Lower Mount O.D. | 2.50" |
| Inside Diameter | 2.63" |
| Wire Diameter | 0.36" |
| Sold in Quantity | Kit |
| Adjustable | Yes |
| Notes | Includes both 1/2" and 5/8" steel reducers for shock mounts. Each kit contains two shocks and two springs. |
