Air Ride Suspension Starter Kit
Air Ride Suspension Starter Kit

Air Ride Suspension Starter Kit

Universal Fit, 0-200 psi Pressure Range (psi)

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Air Ride Suspension Starter Kit
Air Ride Suspension Starter Kit
X
Zoomed In Image
Part # 91602039
Save 6%
$699.99
$749.99
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Air Tank Capacity:
3 gallons
Maximum Pressure:
200 psi
Air Lines Included:
Yes
Air Compressor Included:
Yes
Wiring Harness Included:
Yes
Fittings Included:
Yes
MFG. Part #:
91602039
Sold in Quantity:
Kit
Pressure Range (psi):
0-200 psi
Voltage Required:
12-Volt
Gauges Included:
Yes

Info

This kit will allow you to run 2 air bags independent of each other.  This is a great kit if you want or need to raise or lower just the front or the rearend of your ride and yet have a performance feel.

Kit contains 4 valves: 2 intake valves and 2 exhaust valves.  This kit has enough valves to run both the front and back of your ride, if you're looking to tie two bags together.

Tech Note:  Running two bags on one valve will cause your car to roll into a turn like an old Caddy instead of a modern day car.

Viair 450C air suspension single compressor kit is a continuous duty cycle compressor.  Features include a standard 1/4" NPT stainless braided leader hose with inline check valve and insulated wireing for simple instructions.

Seamless aluminum air tanks have revolutionized welded air tank construction. Specialty Suspension have adapted a new style of technology to create a non-welded tank. The metal spinning process has allowed Specialty to manufacture the tanks from a single piece of extruded aluminum tube.

AVS GAU-200AVS2 Dual Needle Silver Air Gauge is one of the best on the market today. It features a silver gauge face with black lettering. Gauge sweep is full sweep and ranges from 0-200 psi!

AVS offers these great air intake valves with mounting brackets for your air suspension systems. They feature a pressure range of 250 PSI with a thread pitch of 3/8 inch NPT. Mounting brackets included.

The 3-Rocker Series Switch Controllers include cord with male and female connectors. This controller is for a 4-valve setup. The top switch controls front up/down, the bottom switch controls rear up/down, and the middle switch does all up/down.

Compressor Kit Includes:

  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

Fill Rates:

  • 2.5 Gallon Air Tank:
    • 0 to 105 PSI - 1 min. 55 sec.
    • 85 to 105 PSI - 28 sec.
    • 0 to 145 PSI - 3 min. 2 sec.
    • 110 to 145 PSI - 59 sec.

45040 Manual (PDF)

45040 Dimensions (PDF)

45040 Wiring Diagram (PDF)







Features

Viair 450C air suspension single compressor kit:

  • 12 volt
  • Permanent Magnetic Motor
  • 100% duty cycle @ 100 psi
  • 150 psi max working pressure
  • Compatible with up to 5 gal tanks
  • 23 AMP max AMP draw
  • 10.6" length
  • 4" width
  • 6.87" height
  • 10.80 lbs.

Seamless aluminum air tank:

  • 18" Length
  • 6.625" Diameter
  • (4) 3/8" NPT ports (Two on each end cap)
  • (1) 1/4" NPT port - (Drain port at bottom of tank)
  • Rated @ 200psi
  • Mounting brackets and hardware included
  • Industry labeled size 3 gallon
  • Actual volume 2.2 gallons
  • Aluminum construction
  • Natural finish

AVS GAU-200AVS2 Dual Needle Silver Air Gauge:

  • Silver bezel finish
  • Full sweep gauge
  • Gauge range 0-200 psi
  • Black letter color
  • 1/8" NPT male threads

AVS air intake valves:

  • 3/8" NPT threaded ports
  • 15mm orifice
  • Suitable for air/water/oil
  • 12 VDC explosion-proof coil
  • Flow rate: Cv = 4.50
  • Working temperature: 23° - 176° F
  • Included LED indicator on solenoid for trouble shooting and diagnostics
  • Mounting brackets included

Viair 90102 1/8 Inch NPT Air Supsension Pressure Switch, 150 PSI:

  • 1/8 inch male por
  • 20 amperage rating
  • Black color
  • Steel construction
  • 110 psi circuit closes
  • 145 psi circuit opens

3-Rocker Series Switch Controllers:

  • Black in color
  • Easy to install
  • Allows you to control air suspension levels
  • 4" length
  • 2" width
  • 1" height
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

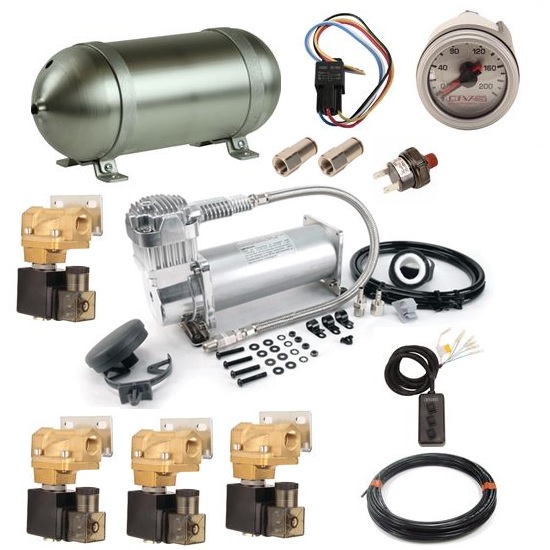

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Viair 45040 Single Air Suspension Compressor Kit, 450C
    Qty x 1
  • Speedway 18 Inch Aluminum Air Suspension Tank, 3 Gallon
    Qty x 1
  • Speedway Budget 40-Amp Electric Relay Kit
    Qty x 1
  • AVS GAU-200AVS2 Dual Needle Air Suspension Gauge, 0-200 psi
    Qty x 1
  • Air Suspension Tubing Straight Connector Fitting, 1/4 - 1/8 NPT
    Qty x 2
  • AVS AVS-VAL38 250 PSI 3/8 Inch Air Suspension Intake Solenoid Valve
    Qty x 4
  • Viair 90102 1/8 Inch NPT Air Supsension Pressure Switch, 150 PSI
    Qty x 1
  • AVS AVS-ARC-3-BL 3-Rocker Series Air Suspension Switch Controller
    Qty x 1
  • Synflex Air Suspension Line, 3/8 Inch, Black, 10 ft.
    Qty x 1
  • Synflex Air Suspension Line, 1/4 Inch, Black, 15 ft.
    Qty x 2
