Product Summary

Modified, Stock Car, Twin Tube Shock Type, Painted

    See more details

    Key Specs

    Shock TypeTwin Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    See more specs

    Need To Know

    Quick and Easy Returns

    Return Policy

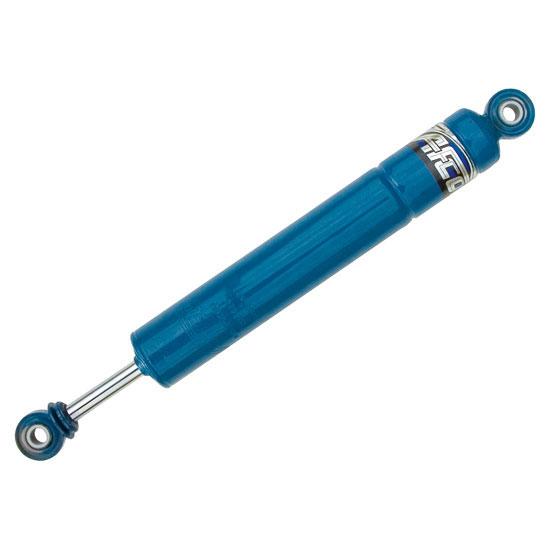

    AFCO 1496 Details

    AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing design that can be used with or without coilovers.

    AFCO fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness.

    The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap.

    • Sealed body
    • Twin-Tube design
    • Can be used with or without coilovers
    • Can be mounted upside-down for reduced unsprung weight
    • Compressed Length: 14.75"
    • Extended Length: 23.50"
    • Stroke: 9"

    When youre ready to win, we have the winning shock!

    Item Details

    Compressed Length: 14.75"
    Extended Length: 23.50"
    Comp. / Rebound: 6/6

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    AFCO 1496 Specifications

    KEY SPECS
    MFG. Part #1496
    BrandAFCO
    Shock TypeTwin Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    Shock Body SizeSmall Body
    Shock Stroke Range9.00" to 9.99"
    Compression Valving6
    Rebound Valving6
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range23.00" to 23.99"
    Extended Length23.5"
    Compressed Length Range14.00" to 14.99"
    Compressed Length14.75"
    FinishPainted
    GENERAL
    Shock Stroke9.00
    Schrader ValveNo
    Coil-Over CompatibleYes
    Valve Positions6 compression - 6 rebound
    RebuildableNo
    Sold in QuantityEach
    Shock Eyelet Width0.625"
    Bolt Hole Circle.500"
    Hardware IncludedNo
