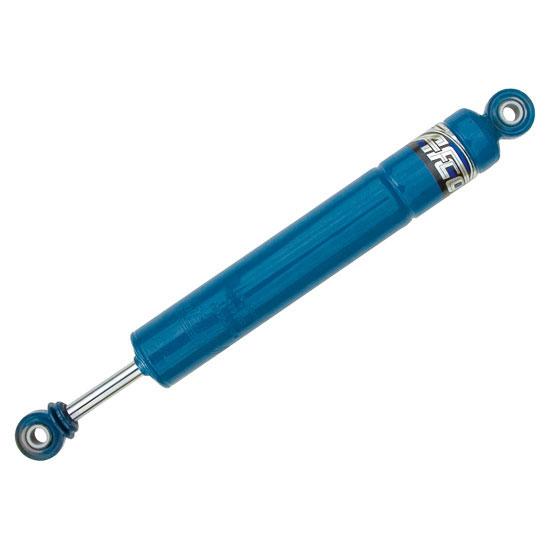

Afco 1494 14 Series Fixed Bearing Shock, 9 Inch, Comp 4/Reb 4
Afco 1494 14 Series Fixed Bearing Shock, 9 Inch, Comp 4/Reb 4
Modified, Stock Car, Twin Tube Shock Type, Non-Adjustable Shock Adjustability, Painted
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Limited Qty
Select Vehicle
Afco 1494 14 Series Fixed Bearing Shock, 9 Inch, Comp 4/Reb 4
X
Part # 1061494
$85.99
$109.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Shock Type:
Twin Tube
Shock Adjustability:
Non-Adjustable
Shock Body Material:
Steel
Shock Body Type:
Smooth
Shock Body Size:
Small Body
Shock Stroke Range:
9.00" to 9.99"
Compression Valving:
4
Rebound Valving:
4
Shock Stroke:
9.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length Range:
23.00" to 23.99"
Extended Length:
23.5"
Compressed Length Range:
14.00" to 14.99"
Compressed Length:
14.75"
Schrader Valve:
No
Finish:
Painted
Coil-Over Compatible:
Yes
Body Diameter:
2.00"
Valve Positions:
4 compression - 4 rebound
Rebuildable:
No
MFG. Part #:
1494
Sold in Quantity:
Each
Shock Eyelet Width:
0.625"
Bolt Hole Circle:
.500"
Hardware Included:
No
Info
AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing design that can be used with or without coilovers.
AFCO fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness. The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap. When youre ready to win, we have the winning shock!
- Sealed body
- Twin-Tube design
- Can be used with or without coilovers
- Can be mounted upside-down for reduced unsprung weight
- Compressed Length: 14.75"
- Extended Length: 23.50"
- Stroke: 9"
Dirt Modified Swing Arm Twin Tube Shock Chart (Link)
Dirt Modified 4-Link Twin Tube Shock Chart (Link)
Dirt Street and Super Stock Shock Chart (Link)
Pavement Street and Super Stock Shock Chart (Link)
Item Details
Compressed Length: 14.75"Extended Length: 23.50"
Comp. / Rebound: 4/4
Application
- Dirt Modifieds
- Recommended Swing Arm Twin Tube Shocks-Sealed Body
- Left or Right Rear
- Base Track Condition
- Left or Right Rear
- Recommended 4-Link Twin Tube Shocks-Sealed Body
- Right Rear Spring Ahead
- Base, Rough Track Condition
- Right Rear (w/Spring Ahead)
- Base Track Condition
- Right Rear Spring Ahead
- Street Stocks and Super Stocks - Dirt/Pavement
- Recommended Dirt Shocks - Economy Twin Tube
- Left or Right Rear
- Camaro Metric Frame
- Left or Right Rear
- Recommended Pavement - Economy Twin Tube
- Left Rear
- Camaro Frame
- Right Rear
- Camaro, Metric Frame
- Left Rear
Important Messages:
