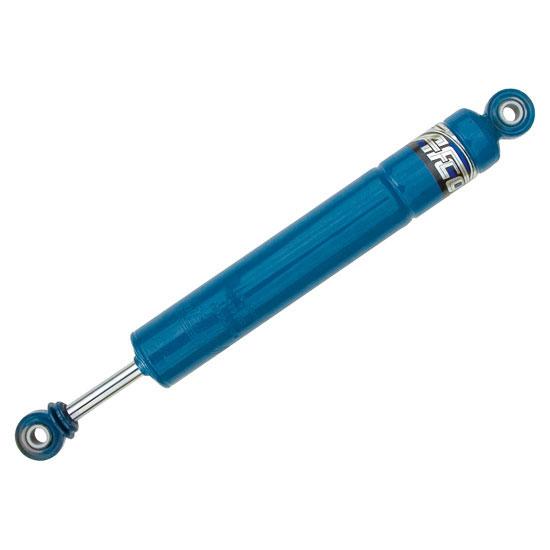

Afco 1493-5 14 Series Fixed Bearing Shock, 9 Inch, Comp 3/Reb 5

#10614935

Afco 1493-5 14 Series Fixed Bearing Shock, 9 Inch, Comp 3/Reb 5

Features a sealed body and a twin tube design
It can be used with or without coilovers and can be mounted upside-down for reduced unsprung weight
Compressed length measures 14.75" and extended length is 23.50"

$125.99

/each

In Stock

$129.99

Save $4.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Modified, Stock Car, Twin Tube Shock Type, Painted

Features a sealed body and a twin tube design
It can be used with or without coilovers and can be mounted upside-down for reduced unsprung weight
Compressed length measures 14.75" and extended length is 23.50"
Shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound
The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap

See more details

Key Specs

Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	2"
Shock Body Type	Smooth

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 14935 Details

AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing design that can be used with or without coilovers.

AFCO fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness. The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap. When youre ready to win, we have the winning shock!

Sealed body
Twin-Tube design
Can be used with or without coilovers
Can be mounted upside-down for reduced unsprung weight
Compressed Length: 14.75"
Extended Length: 23.50"
Stroke: 9"

Item Details

Compressed Length: 14.75"
Extended Length: 23.50"
Comp. / Rebound: 3/5

Application

Dirt Modifieds
Recommended Swing Arm Twin Tube Shocks-Sealed Body
- Right Rear
  - Slick Track Condition
Recommended 4-Link Twin Tube Shocks-Sealed Body
- Right Rear Spring Ahead
  - Slick Track Condition
- Right Rear (w/Spring Ahead)
  - Base Track Condition
Street Stocks and Super Stocks - Pavement
Recommended Pavement - Economy Twin Tube
- Left Rear
  - Metric Frame

Charts

Dirt Modified Swing Arm Twin Tube Shock Chart (JPG)

Dirt Modified 4-Link Twin Tube Shock Chart (JPG)

Pavement Street and Super Stock Shock Chart (JPG)

Guides & Documents

Shocks Technical Information (10614935)

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AFCO 14935 Specifications

KEY SPECS
MFG. Part #	14935
Brand	AFCO
Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	2"
Shock Body Type	Smooth
Shock Body Size	Small Body
Shock Stroke Range	9.00" to 9.99"
Position	Front or Rear
Stroke	9"
Compression Valving	3
Rebound Valving	5
Mount Position	Stock Mount
Upper Shock Mount	1/2" Spherical Rod End
Lower Shock Mount	1/2" Spherical Rod End
Extended Length Range	23.00" to 23.99"
Extended Length	23.5"
Compressed Length Range	14.00" to 14.99"
Finish	Painted
Compressed Length	14.75"
Gas Charged	Yes

GENERAL
Rebuildable	No
Schrader Valve	No
Shock Stroke	9.00
Coil-Over Compatible	Yes
Valve Positions	3 compression - 5 rebound
Shock Eyelet Width	0.625"
Bolt Hole Circle	0.5"
Hardware Included	No
Sold in Quantity	Each

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

here's what i need 74 lf 75 right front and 94,s on back but back needs to have ring for coil over sleeve's any help I'm new to the modified's

by bob

• 8 years ago

1 answer

View Answer

1 of 1 questions shown
