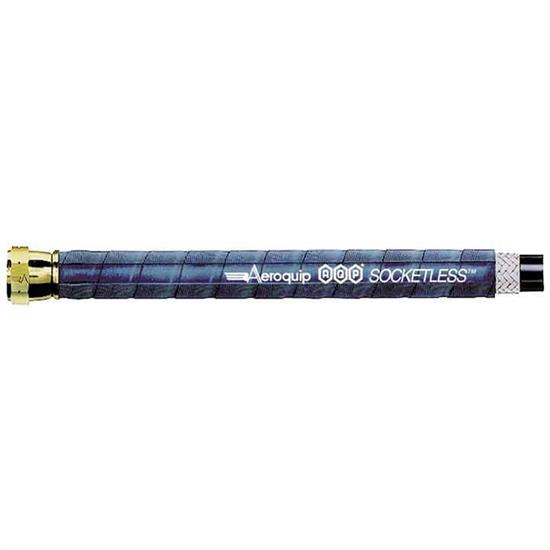

Aeroquip Special Application Socketless -8 AN Hose, Blue
- Features a textile braid reinforcement
- Has a 250psi rating and a -40° to +300° F temp range
- Will work with gasoline, fuel and lubricating oils, air and water
See More
Starting from
$20.99
each
In Stock
$139.99
Save $119.00
Add to a list
Share
Product Summary
Universal Fit, -8 AN Hose Size, Elastomer, Blue
- Features a textile braid reinforcement
- Has a 250psi rating and a -40° to +300° F temp range
- Will work with gasoline, fuel and lubricating oils, air and water
- It is -8AN hose size and is available in several different lengths
- The low pressure design is for use with socketless reusable fittings only
See more details
Key Specs
| Hose Size | -8 AN |
| Material Type | Elastomer |
| Hose Length | Select Length |
| Color | Blue |
| Hose ID | 0.500" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
- Textile braid reinforcement
- Low pressure design for use with socketless reuseable fittings only
- No hose clamp necessary
- Ideal hose for fuel line applications
- 50,000 ft of hose in stock!
Construction: AQP elastomer tube, textile braid reinforcement, blue AQP elastomer cover.
Application: For gasoline, fuel and lubricating oils, air and water. Not recommended for hydraulic impulse applications and is not approved for air brake, hydraulic brake or power steering applications.
Operating Range: Max Operating pressure: 250 PSI. Minimum burst pressure: 1000 PSI. Operating Temperature Range -40°F to 300°F. Air not to exceed +250°F and water not to exceed +180°F. Reduced pressure operation allows for temperatures up to 300°F.
Charts
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| Brand | Aeroquip |
| Hose Size | -8 AN |
| Material Type | Elastomer |
| Hose Length | Select Length to see |
| Color | Blue |
| Hose ID | 0.500" |
| Hose OD | 0.750" |
| GENERAL | |
| Speedway Motors Catalog Part # | 617-508 |
| Outer Braid | Textile |
| Pressure Rating | 250 psi |
| Temp. Range | -40° to +300° F |
| Burst Pressure | 1000 psi |
| Sold in Quantity | Each |
