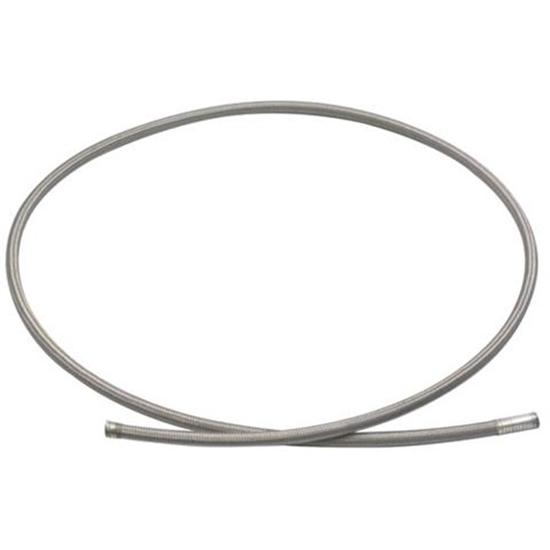

Aeroquip FCC0303 -3 AN TFE Braided High Pressure Hose-1/8 Inch ID-3 Ft
$14.99
/each
In Stock
$45.47
Save $30.48
Quantity
Need Help? Call to Order
Add to a list
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAeroquip FC0303 Details
Aeroquip FC0303 Details
Manufactured by Eaton with a Teflon® inner liner to provide you with unsurpassed levels of performance and reliability for your tough performance applications. Provides maximum performance by combining the low friction properties of the Teflon® inner liner with the antiburst strength from a stainless steel overbraiding. Stainless overbraid won't corrode or discolor. This hose is ideal for high temperature, high pressure, and offers wide range of fluid compatibility.
The maximum operating pressure is 3,000psi. Teperature range is -100 degrees to 450 degrees F
Use with either crimp or reusable fittings.
Applications include off-road brake, transmission, clutch, gauge, nitrous oxide, power steering, hydraulic and air conditioning.
See part # 6172013 for correct fittings to use with this hose.
Charts
Aeroquip FC0303 Specifications
Aeroquip FC0303 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | FC0303 |
| Brand | Aeroquip |
| Hose Size | -3 AN |
| Material Type | Teflon |
| Hose Length | 3 ft. |
| Hose ID | 0.14" |
| Hose OD | 0.25" |
| GENERAL | |
| Outer Braid | Stainless |
| Pressure Rating | 3000 psi |
| Temp. Range | -100° to +450° F |
| Overall Diameter | 0.26" |
| Notes | -3 AN hose. |
| GTIN Code | 678146000460 |
| Sold in Quantity | Each |
