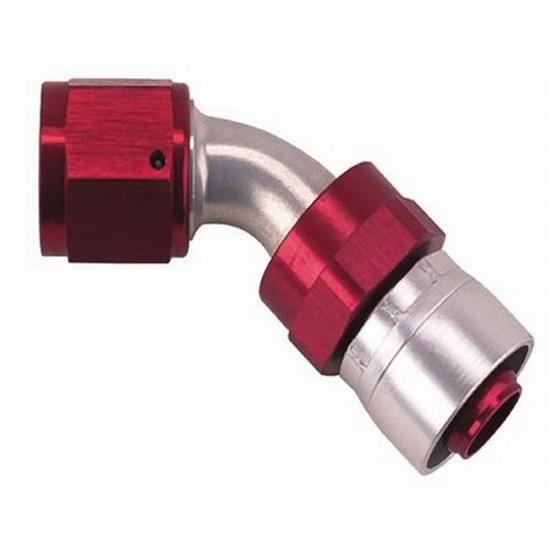

Aeroquip FBM4225 Starlite Crimp Fitting, 45 Degree, -12 AN
Straight180 Degree
$46.99
/each
In Stock
$164.06
Save $117.07
Quantity
Need Help? Call to Order
Add to a list
Share
$117 Off
$117 Off
|
#6174225
$46.99
/each
In Stock
$164.06
Save $117.07
Quantity
Need Help? Call to Order
Add to a list
| Fitting Hose Size | -12 AN |
| Fitting End A | -12 AN Female |
| Fitting End B | -12 AN Hose |
| Angle | 45 degree |
| Material Type | Aluminum |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyStarlite hose can be used with either crimp style or reusable hose fittings. Crimp style fitting must be used only with Starlite hose and installed by qualified personnel using an Aeroquip ProCrimp 1380 crimping machine.
There are only two ways to order these fittings and hose:
Charts
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | FBM4225 |
| Brand | Aeroquip |
| Fitting Hose Size | -12 AN |
| Fitting End A | -12 AN Female |
| Fitting End B | -12 AN Hose |
| Angle | 45 degree |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Red/Silver |
| GENERAL | |
| Fitting Style | Non-Swivel |
| Reusable | No |
| Assembly Method | Crimp |
| Adjustable | No |
| Sold in Quantity | Each |
| O-Rings Included | No |
| Hose Style | Aeroquip Starlite Hose |
| Thread Pitch | 1-1/16" - 12 |
| Pressure Rating | 200 lbs |
| Notes | Crimp style fitting must be used only with Starlite hose and installed by qualified personnel using an Aeroquip ProCrimp 1380 crimping machine |
| GTIN Code | 678146118936 |
