#6174213

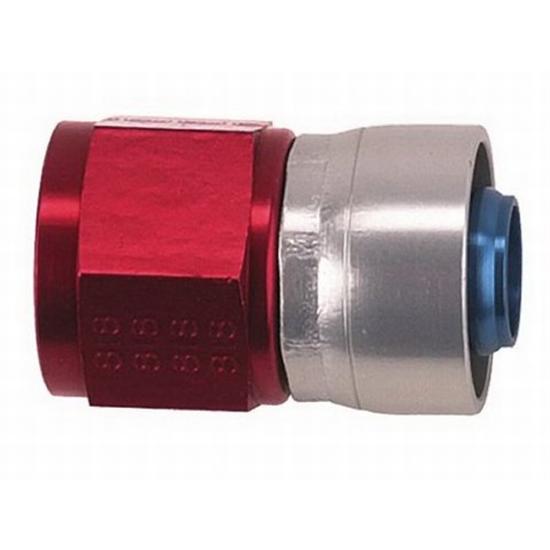

Aeroquip FBM4213 Starlite Crimp Fitting, Straight, -8 AN
45 Degree
$19.49
/each
In Stock
$63.32
Save $43.83
Quantity
Need Help? Call to Order
Add to a list
Share
Key Specs
| Fitting Hose Size | -8 AN |
| Fitting End A | -8 AN Female |
| Fitting End B | -8 AN Hose |
| Angle | Straight |
| Material Type | Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAeroquip FBM4213 Details
Aeroquip FBM4213 Details
Aeroquip's incredible Starlite racing hose and fittings are up to 45% lighter than stainless steel braided hose and reusable fittings. Can be used with fuel, lube and coolants. Working temperature is -45° to +300°F and have a 200 psi working pressure.
Starlite hose can be used with either crimp style or reusable hose fittings. Crimp style fitting must be used only with Starlite hose and installed by qualified personnel using an Aeroquip ProCrimp 1380 crimping machine.
There are only two ways to order these fittings and hose:
- Bring or mail us your old hose to match.
- We will send you the fittings and hose you think will work. You cut the hose to length and send it back to us for crimping.
Charts
Guides & Documents
Aeroquip FBM4213 Specifications
Aeroquip FBM4213 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | FBM4213 |
| Brand | Aeroquip |
| Fitting Hose Size | -8 AN |
| Fitting End A | -8 AN Female |
| Fitting End B | -8 AN Hose |
| Angle | Straight |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Red/Silver |
| GENERAL | |
| Fitting Style | Swivel |
| Reusable | No |
| Assembly Method | Crimp |
| Adjustable | No |
| Sold in Quantity | Each |
| O-Rings Included | No |
| Hose Style | Aeroquip Starlite Hose |
| Thread Pitch | 3/4" - 16 |
| Inside Diameter | .36" |
| Notes | Crimp style fitting must be used only with Starlite hose and installed by qualified personnel using an Aeroquip ProCrimp 1380 crimping machine. |
| GTIN Code | 678146118851 |
