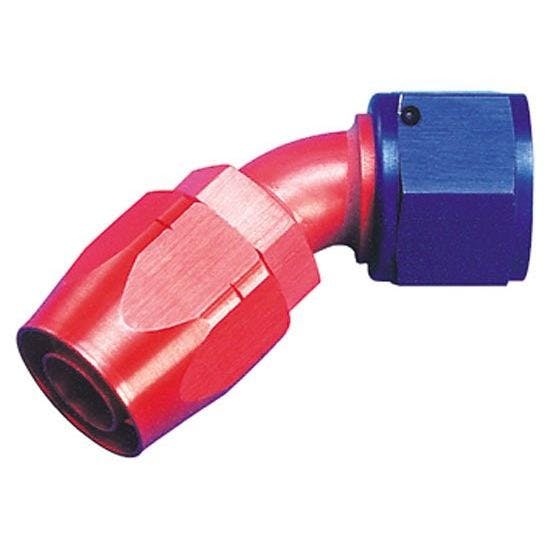

Aeroquip FBM1022 45 Degree Hose End Coupler Fitting, Red/Blue, -6 AN

-71%

#6171009

Aeroquip FBM1022 45 Degree Hose End Coupler Fitting, Red/Blue, -6 AN

Name: Aeroquip FBM1022 45 Degree Hose End Coupler Fitting, Red/Blue, -6 AN
Brand: Aeroquip
SKU: 6171009
Price: 29.99 USD
Availability: InStock
Rating: 5 (2 reviews)

2 Reviews

Ask a Question

-6AN fitting size
37° angled sealing surface guarantees a positive anti-leak seal
Available in red or blue anodized finish

Angle:

45 Deg

90 Deg Straight120 Deg 180 Deg

Color:

Blue/Red

Black

$29.99

/each

In Stock

$105.03

Save $75.04

Quantity

Need Help? Call to Order

Add to a list

Product Summary

Universal Fit, -6 AN Fitting Hose Size, 45 degree Angle

-6AN fitting size
37° angled sealing surface guarantees a positive anti-leak seal
Available in red or blue anodized finish
9/16" - 18 thread pitch
Made to accept a variety of lightweight aluminum AN style adapters & fittings

See more details

Key Specs

Fitting Hose Size	-6 AN
Fitting End A	-6 AN Female
Fitting End B	-6 AN Hose
Angle	45 degree
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Aeroquip FBM1022 Details

This revolutionary one-piece fitting design offers motorsport enthusiasts uncompromised quality and assurance that they are using the highest performing components available. These compression-style fittings are easier to assemble and offer significantly better seal integrity than out-dated cutter-style fittings. Available in swivel with a red and blue anodized finish. For use with Aeroquip AQP® Stainless Steel Racing Hose and Aeroquip StartLite® light-weight hose (part number 617306).

-6 AN
Lightweight aluminum hose ends are completely reusable, and interchangeable
Unique taper design ensures easy assembly
37° angled sealing surface guarantees a positive anti-leak seal
Accepts a variety of lightweight aluminum AN style adapters & fittings
Available in Red/Blue corrosion resistant finish

45° Full Flow Ends come in sizes of AN4,AN6, AN8, AN10, AN12 and AN16.

Charts

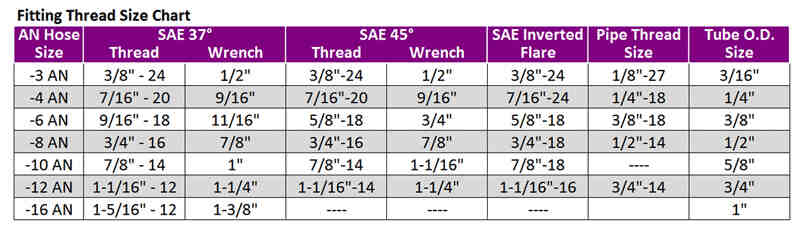

Fitting Thread Application Chart (GIF)

Guides & Documents

AN Hose Ends Technical Information (6171009)

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Aeroquip FBM1022 Specifications

KEY SPECS
MFG. Part #	FBM1022
Brand	Aeroquip
Fitting Hose Size	-6 AN
Fitting End A	-6 AN Female
Fitting End B	-6 AN Hose
Angle	45 degree
Material Type	Aluminum
Finish	Anodized
Color	Red/Blue

GENERAL
Fitting Style	Reusable non-swivel
Reusable	Yes
Assembly Method	Twist-On
Adjustable	No
Sold in Quantity	Each
O-Rings Included	No
Thread Pitch	9/16" - 18
Inside Diameter	.23"
GTIN Code	678146001092

Ratings & Reviews

2 Reviews

Overall Assessment

Customers appreciate the high quality and aesthetics of AN fittings. They noted the importance of staying consistent with the same line for color matching. Despite some initial confusion around part compatibility, the strong recommendation for repurchase indicates the product's overall practical value and material quality compared to others.

Write A Review

2 reviews

Filter by Ratings

Sort Reviews

Looks good and nice quality!

5.0

8 years ago

40Ford

Thousand Oaks CA

Verified

This was my first time using AN fittings, guess I didn't understand them because I ordered the wrong parts so I couldn't do my transmission lines. Make sure you stay with the same line of fittings so the colors match.

Would Recommend

would purchase again

5.0

9 years ago

grasshopper

Council Bluffs IA.

Verified

good quality

Would Recommend
