Aero Nose Wing Stand and Tube Clamp
Sprint Car, 1.50" Overall Width, 1.53" Hole Diameter, .50" Overall Thickness

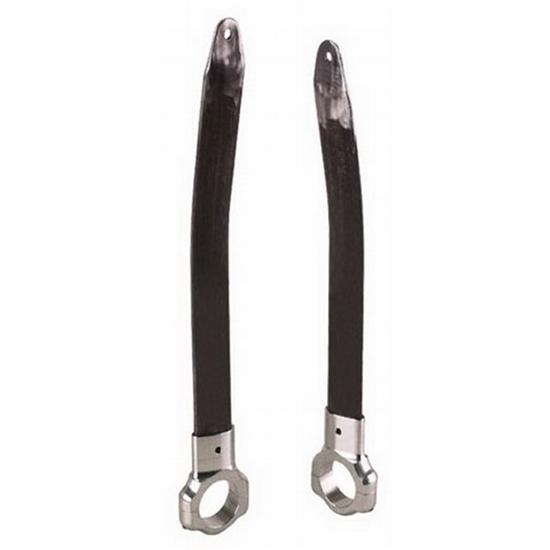

This sprint car outer nose wing mount has a narrow, aerodynamic shape for less drag. It features a Chromoly post with a CNC-machined aluminum tube clamp that makes it easy to attach or remove from your torsion tube. Specify right side or left side.
- Strong, aerodynamic chromoly post
- Lightweight billet aluminum clamp
- Quickly clamps to standard sprint car front torsion tubes
- Mounting nose wing off torsion tube on most sprint cars
- 12-5/8” center of hole to center of hole (LH)
- 13” center of torsion tube hole to tip of post (LH)
- 13-1/8” center of hole to center of hole (RH)
- 13-1/2" center of torsion tube hole to tip of post (RH)
- 1-1/2" wide by 1/2" thick
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
What's In The Kit
