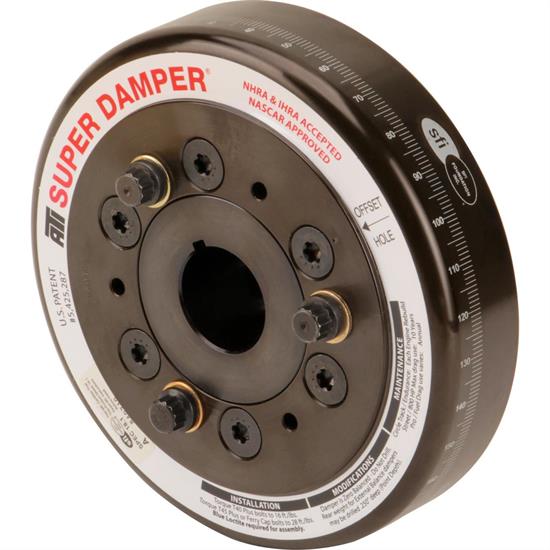

ATI 917781 Super Damper Std Harmonic Balancer, S/B Chevy Engines
Chevy Small Block V8, 6.325" Outside Diameter, 18.1 SFI Rating, 9 lbs. Weight, Steel, Black
- Specially designed for high-rpm engines
- It is tunable in the field and fully rebuildable
- Has an internal balance small block V8 & V6 Chevy with a 1.246" Crank
- Tuned to eliminate harmful crankshaft harmonics that cause parasitic horsepower loss
- Engineered to all but eliminate worn parts and timing problems
Super Damper standard harmonic balancers from ATI are specifically designed for high-rpm engines. Their proven elastomer is designed and tuned to eliminate harmful crankshaft harmonics that cause parasitic horsepower loss. They are actually two dampers in one--a 4 in. diameter inner damper and a 6 3/8 in.diameter outer damper in two shells that bolt to the crank hub.These dampers are engineered to all but eliminate worn parts and timing problems. They're tunable in the field, rebuildable, and extremely efficient at all rpm. SFI certified.
- Designed for high-rpm engines
- Tunable in the field
- SFI rated
- Internal Balance S/B V8 & V6 Chevy w/ 1.246" Crank
- 6.325" O.D.
- 6.00 lb total weight
- 2.40 lb inertia weight
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
