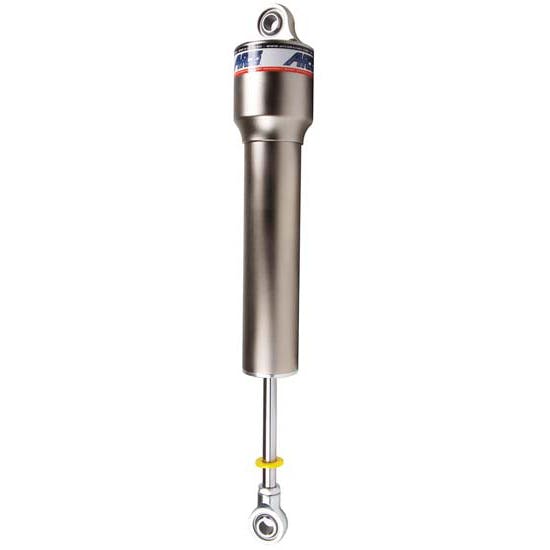

AFCO Silver 56 Series Gas Bulb Shocks, IMCA Approved
AFCO Silver 56 Series Gas Bulb Shocks, IMCA Approved

AFCO Silver 56 Series Gas Bulb Shocks, IMCA Approved

0 Reviews | 0 Answered Questions
In Stock
AFCO Silver 56 Series Gas Bulb Shocks, IMCA Approved
AFCO Silver 56 Series Gas Bulb Shocks, IMCA Approved
Zoomed In Image
Part # 10656
Starting from
$309.99
each
Quantity:
Length
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Details

Shock Type:
Mono Tube
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Shock Stroke Range:
Select Length/Compression/Rebound to see
Shock Stroke:
Select Length/Compression/Rebound to see
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
Select Length/Compression/Rebound to see
Compressed Length:
Select Length/Compression/Rebound to see
Extended Length Range:
Select Length/Compression/Rebound to see
Compressed Length Range:
Select Length/Compression/Rebound to see
Compression Valving:
Select Length/Compression/Rebound to see
Rebound Valving:
Select Length/Compression/Rebound to see
Schrader Valve:
Select Length/Compression/Rebound to see
Finish:
Powder Coated
Coil-Over Compatible:
Yes
Body Diameter:
1.97"
Valve Positions:
Select Length/Compression/Rebound to see
Bushing Material:
Steel
MFG. Part #:
Select Length/Compression/Rebound to see
Sold in Quantity:
Each
Notes:
IMCA Legal
Inside Diameter:
46 mm
Bulb Diameter:
2.75"
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No
Gas Charged:
Yes

Info

AFCO Silver 56 Series Bulb Shocks feature a bulb design for reduced gas pressure gain and increased feel for worry-free racing.

  • Ultra-strong DURox chrome shaft
  • Owner serviceable
  • Easily tuned for any track condition
  • Base valve, IMCA approved

Tuning Guide (PDF)

Application

  • Dirt Late Model/Crate Late Model
  • Recommended 4-Link Gas Shocks-IMCA Legal
    • Left Front Shocks
      • 10656-7-5-5 - Base, Rough Track Condition
      • 10656-7-5-3 - Slick Track Condition
    • Right Front Shocks
      • 10656-7-4-5 - Base Track Condition
      • 10656-7-3-5 - Slick Track Condition
      • 10656-7-4-6 - Rough Track Condition
    • Right Rear Spring Ahead Shocks
      • 10656-9-4-4 - Base Track Condition
      • 10656-9-3-5 - Slick Track Condition
      • 10656-9-4-4RT - Rough Track Condition
    • Right Rear Shocks (w/Spring Ahead)
      • 10656-9-4-6 - Base Track Condition
      • 10656-9-3-7 - Slick Track Condition
      • 10656-9-5-5 - Rough Track Condition
  • Recommended Swing Arm Gas Shocks-IMCA Legal
    • Left Front Shocks
      • 10656-7-5-5 - Rough Track Condition
      • 10656-7-4-6 - Base Track Condition
      • 10656-7-5-3 - Slick Track Condition
    • Right Front Shocks
      • 10656-7-3-5 - Base Track Condition
      • 10656-7-4-6 - Slick, Rough Track Condition
    • Right Rear Shocks
      • 10656-9-4-4 - Base Track Condition
      • 10656-9-2-4 - Slick Track Condition
      • 10656-9-4-5 - Rough Track Condition
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
Select a Length/Compression/Rebound above to see what items are in this kit.
