#10670
AFCO 70 Series Stock Mount Mono-Tube Shock
$189.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
|
#10670
$189.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Shock Type | Mono Tube |
| Position | Select Rebound, Compression and Series |
| Compression Valving | Select Rebound, Compression and Series |
| Rebound Valving | Select Rebound, Compression and Series |
| Mount Position | Stock Mount |
Need help?
855.313.9176Quick and Easy Returns

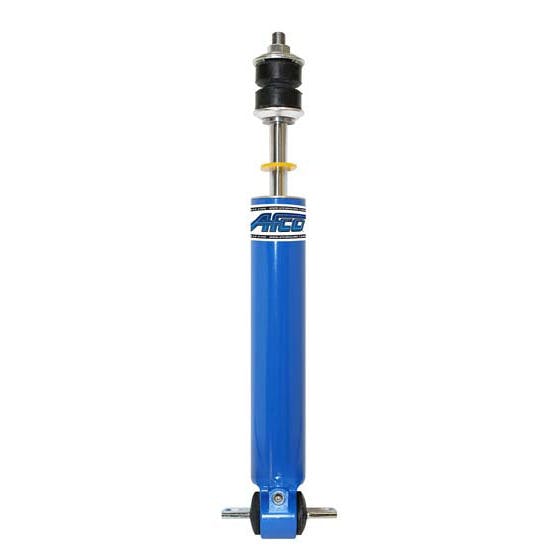

Return PolicyGet bearing mount shock technology in a stock mount application with these new 70 Series shocks from AFCO. These monotube racing shocks offer great consistency, tunability and are available in any valve combination so you can create your own custom setup. All AFCO racing shocks are 100% dyno tested.
Important Note: This 70 series shock has several options for fitment. Please read each explantion below and reference the photos before making your selection.

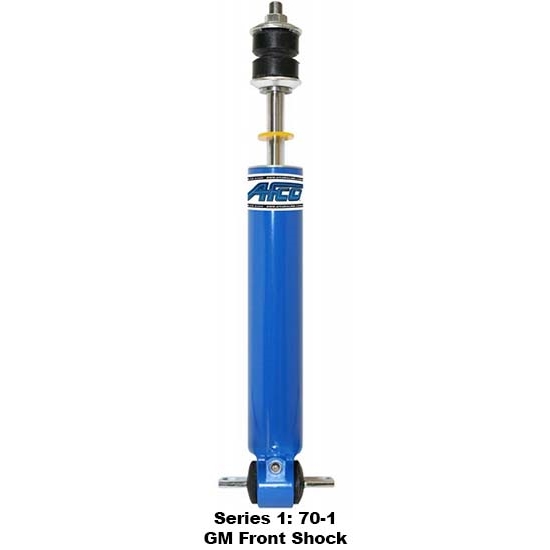

Series 1:
The 70-1 GM Front Shock is designed for GM full-size and mid-size 1973-1988 A/G body. This shock is legal for the IMCA Southern Sport Modified, WISSOTA Hobby Stock, and USRA Stock Car Series. This shock features stock mount legal tie-bars and bushings, OE compatible hardware, and a .5 hard chrome piston rod.

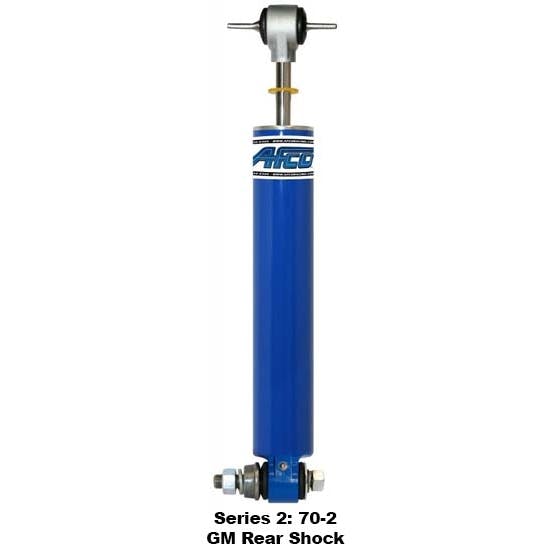

Series 2:
The 70-2 GM Rear Shock is designed for GM full-size and mid-size 1973-1988 A/G body. This shock is legal for the IMCA Southern Sport Modified, WISSOTA Hobby Stock, and USRA Stock Car Series. This shock features stock mount legal tie-bars and bushings, OE compatible hardware, and a .5 hard chrome piston rod.
Series 3:
The 70-3 Camaro Rear Shock is designed for 1970-1981 Camaro's. This shock is legal for the IMCA Southern Sport Modified, WISSOTA Hobby Stock, and USRA Stock Car Series. This shock features stock mount legal tie-bars and bushings, OE compatible hardware, and a .5 hard chrome piston rod.

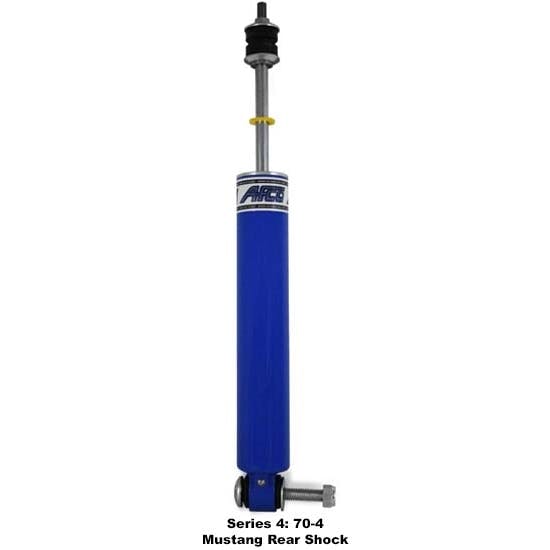

Series 4:
The 70-4 Ford Rear Shock is designed for 1979-1983 Mustang's. This shock is legal for the IMCA Southern Sport Modified, WISSOTA Hobby Stock, and USRA Stock Car Series. This shock features stock mount legal tie-bars and bushings, OE compatible hardware, and a .5 hard chrome piston rod.
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Rebound, Compression and Series to see |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 1.68" |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
| Position | Select Rebound, Compression and Series to see |
| Stroke | 9" |
| Compression Valving | Select Rebound, Compression and Series to see |
| Rebound Valving | Select Rebound, Compression and Series to see |
| Mount Position | Stock Mount |
| Upper Shock Mount | Stud |
| Lower Shock Mount | T-Bar |
| Extended Length Range | Select Rebound, Compression and Series to see |
| Extended Length | Select Rebound, Compression and Series to see |
| Compressed Length Range | Select Rebound, Compression and Series to see |
| Finish | Select Rebound, Compression and Series to see |
| Compressed Length | Select Rebound, Compression and Series to see |
| Gas Charged | Yes |
| GENERAL | |
| Rebuildable | Yes |
| Schrader Valve | No |
| Bolt Hole Circle | 0.5" |
| Notes | Requires AFCO 550000740 to fill port on shock |
| Sold in Quantity | Each |
1 Question • 1 Answer
Are these IMCA Hobby Stock legal?
by me
• 10 years ago
1 answer
View Answer
1 of 1 questions shown
