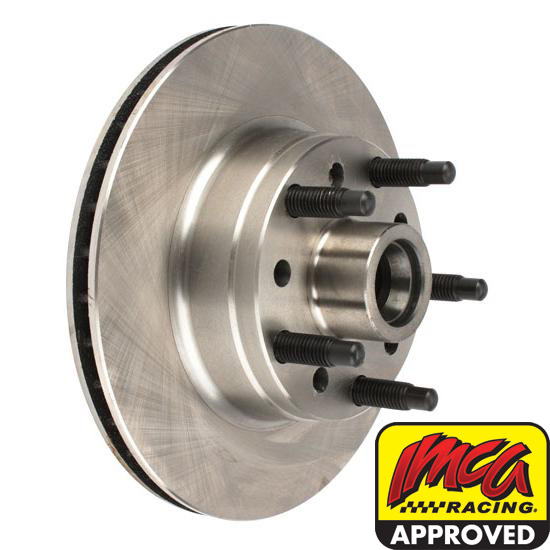

AFCO 9850-6510 11 Inch Granada Style Brake Rotor, 1975-1981 5 x 5 Inch

-14%

#10698506510

AFCO 9850-6510 11 Inch Granada Style Brake Rotor, 1975-1981 5 x 5 Inch

Name: AFCO 9850-6510 11 Inch Granada Style Brake Rotor, 1975-1981 5 x 5 Inch
Brand: AFCO
SKU: 10698506510
Price: 103.99 USD
Availability: InStock
Rating: 4.8 (4 reviews)

4 Reviews

6 Questions

Specially designed to fit the 975-1981 Ford Granada
Rotor has a 11" diameter x .875" thickness
It is pre-drilled with 5 x 5" stock pattern

$103.99

/each

In Stock

$120.99

Save $17.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, Round Rotor Shape, Vented Rotor Type

Specially designed to fit the 975-1981 Ford Granada
Rotor has a 11" diameter x .875" thickness
It is pre-drilled with 5 x 5" stock pattern
Engineered so the it meets OEM sanctioning requirements for modifieds, street stocks, and hobby stocks
Reduces rotating weight and fits the Pinto pin

See more details

Key Specs

Rotor Diameter	11 Inch
Rotor Style	Plain Face
Rotor Material Type	Cast Iron
Rotor Thickness	0.88"
Bolt Pattern	5 on 5"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Brake Rotors Installation Instructions (10698506510)

Installation Tips

Proper Break-In Procedure for Steel or Cast Iron Rotors

New steel/iron rotors should be bedded in before being used in racing conditions. Proper bedding will prepare the rotor surface, prolong the rotor's life, and make it more resistant to thermal checking or cracking under severe braking conditions. The following procedures should be performed when bedding in both steel and cast iron rotors. It is best to bed in a new rotor using a used set of pads, preferably ones which will not create heat rapidly. Generating heat too rapidly will thermal shock the rotors. Likewise, when bedding in a new set of brake pads it is best to perform the process on a used rotor. This new/used bedding process permits controlled bedding of each individual component.

Make sure rotor surfaces are free from oils, grease, and brake fluid. Run vehicle up to a moderate speed and make several medium deceleration stops to heat up the rotor slowly. This will help reduce the chance of thermal shock caused by uneven heating of the rotor. Pull into the pits and allow the rotor to cool to ambient air temperature. Care should be taken not to ride the brakes into the pits as this may hot spot the rotor causing premature wear to the surface or structural damage.

AFCO 9850-6510 Details

AFCOs premium 1975-1981 Ford 11" Granada style brake rotor has these great features:

Reduces rotating weight
Fits Pinto pin
Pre-drilled with 5 x 5" stock pattern
11" diameter x .875" thickness
Races pre-installed
Stock-appearing
Meets OEM sanctioning requirements for modifieds, street stocks, and hobby stocks

Item Details

5/8" coarse studs on 5 x 5" pattern

IMCA Approved.

Charts

Instructions (PDF)

Guides & Documents

Brake Rotors Installation Instructions (10698506510)

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AFCO 9850-6510 Specifications

KEY SPECS
MFG. Part #	9850-6510
Brand	AFCO
Rotor Diameter	11 Inch
Rotor Style	Plain Face
Rotor Material Type	Cast Iron
Rotor Thickness	0.88"
Bolt Pattern	5 on 5"

GENERAL
Position	Front
Rotor Shape	Round
Rotor Type	Vented
Rotor Finish	Plain
Stud Length	1.92"
Stud Diameter	0.63"
Weight	18.9 lbs.
Sold in Quantity	Each
