Part # 10685241

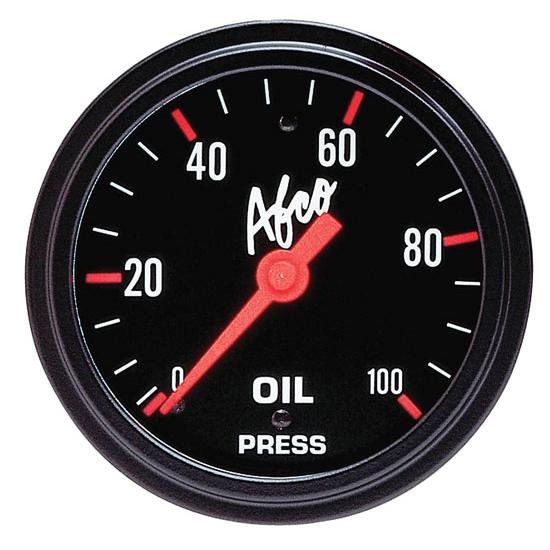

AFCO 85241 Mechanical Oil Pressure Gauge
by
AFCO2 Reviews
|
1 Question
$48.99
each
In Stock
Order soon, only 3 left in stock!
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 2-5/8" Gauge Diameter, Black, White, Red
See more details
Key Specs
| MFG. Part # | 85241 |
| Brand | AFCO |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Lightweight 2-5/8" AFCO gauges feature black bezel and black backlit face which makes these gauges easy to read. Also included with the gauge is a mounting bracket with all the necessary hardware to complete.
- 2-5/8" gauge 0-100 PSI
- Mounting bracket and hardware
For add-on warning light, see 106-85190.
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 85241 |
| Brand | AFCO |
| GENERAL | |
| Gauge Diameter | 2-5/8" |
| Gauge Series | Analog |
| Gauge Style | Mechanical |
| Gauge Range | 0-100 psi |
| Gauge Face Color | Black |
| Lettering Color | White |
| Needle Color | Red |
| Lighted | Yes |
| Overall Diameter | 2.78" |
| Body Diameter | 2.58" |
| Body Length | 1.00" |
| Depth | 2.77" |
| Mounting Bolt Center to Center | 2.12" |
| Stud Length | .88" |
| Stud Diameter | .19" |
| Thread Pitch | 1/8" NPT |
| Bezel Finish | Black Paint |
| Sold in Quantity | Each |
| Notes | Includes blue, green, and red light bulb colors. |
