Product Summary

Mono Tube Shock Type, Steel Shock Body Material

    See more details

    Key Specs

    Shock TypeMono Tube
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    See more specs

    Need To Know

    Quick and Easy Returns

    Return Policy

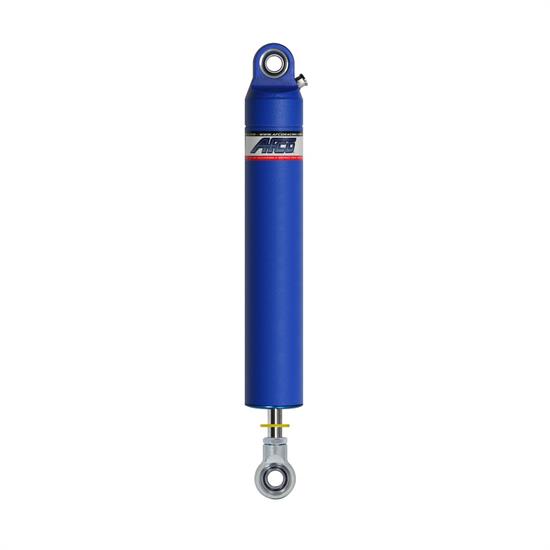

    AFCO 79-7-5-5 Details

    The AFCO Street Stock Spec Shock Program is based off AFCO’s popular 71and 74 Series Shocks. With thousands built every year, these shocks have proven to be very consistent, durable, and repeatable. Because each part number uses the same set of components for every production run, and because the performance specifications are consistent and repeatable, this line of shocks is easy to validate by a single dyno test on an approved dyno. This program is an economy platform that is inexpensive to maintain for the racer. The average rebuild cost at the end of the season is $50 for labor, oil, and seals. Should the racer need more extensive service, quick repair services are available from AFCO. Low up-front and maintenance costs, plus rendering the shocks tamper proof to eliminate high customization fees, makes this an ideal platform for cost-conscious racers. Tamper Proof Features:Cover plate prevents access to retaining ring and also prevents gland from being pressed into the body. Cover plate is retained with two tamper proof screws. Screws can only be removed using a serialized key from AFCO.Gland is retained with a round-wire retaining ring. Ring cannot be removed without pressing gland into the body.Only AFCO can create keys and related tamper proof screws. Key design is a pattern exclusive to this program. Key inventory is protected by a unique serial number with access strictly limited to AFCO. Traditional tamper-resistant bits will not work with these screws.

    Warranty Information

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    AFCO 79-7-5-5 Specifications

    KEY SPECS
    MFG. Part #79-7-5-5
    BrandAFCO
    Shock TypeMono Tube
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    Shock Stroke Range7.00" to 7.99"
    Compression Valving5
    Rebound Valving5
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range19.00" to 19.99"
    Extended Length19.85"
    Compressed Length Range12.00" to 12.99"
    FinishPowder Coated
    Compressed Length12.95"
    Gas ChargedYes
    GENERAL
    Schrader ValveNo
    Shock Stroke7.00
    Coil-Over CompatibleYes
    Shock Eyelet Width0.625"
    Hardware IncludedNo
    Sold in QuantityEach
