AFCO 7250-0200 Complete Rear Disc Brake Kit, 2-1/2 Inch Piston

#10672500200

AFCO 7250-0200 Complete Rear Disc Brake Kit, 2-1/2 Inch Piston

3 Questions

Calipers feature a natural finish and have one caliper

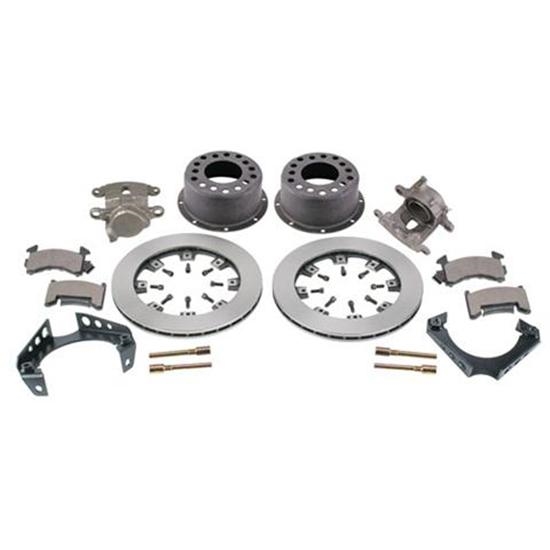

Kit includes rotors, rotor hats, caliper brackets, calipers, pads, and all necessary hardware
The hat fits 4-1/2", 4-3/4" and 5" bolt circles

$422.99

In Stock

Order soon, only 3 left in stock!

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Rear Position, 11.75 Inch Rotor Diameter

Calipers feature a natural finish and have one caliper
Kit includes rotors, rotor hats, caliper brackets, calipers, pads, and all necessary hardware
The hat fits 4-1/2", 4-3/4" and 5" bolt circles

Comes as a Kit

View Kit Components

See more details

Key Specs

Position	Rear
Bolt Pattern	Multi: 5 on 4.5" \| 4.75" \| 5"
Rotor Diameter	11.75 Inch
Rotor Type	Vented
Caliper Pistons	One

See more specs

Need To Know

This Product Will Ship Free

Need help?

Quick and Easy Returns

Installation Details

Everything You Need to Know About Converting Drum Brakes to Disc

Brake Rotors Instruction Sheet (10698506021)

Brake Rotor Hats Instruction Sheet (91031904)

Brake Pad Identification and Friction Surface Options Explained

Installation Tips

Brake pad and caliper installation note:

This bracket features a 90 degree bend in the bracket at the slider bolt threaded area for additional caliper support. This part of the bracket may or may not interfere with the corner of the inner brake pad backing plate due to differences in brake pad manufacturers. When this occurs, it will be necessary to simply remove a minimal amount of backing plate material at each corner of the inner brake pad to allow for the necessary clearance between the bracket and brake pad when the caliper and pads are fully installed.

Have a Question?

Talk with one of our experts!

Call Us - 1.855.313.9176

AFCO 7250-0200 Details

Complete kit with standard GM metric calipers. Mounts vented rotors and calipers to 3" tube rearend. Complete with rotors, hats, calipers, brackets, brake pads and slide bolts. Hat fits 4-1/2", 4-3/4" and 5" bolt circle.

Guides & Documents

Everything You Need to Know About Converting Drum Brakes to Disc

Brake Rotors Instruction Sheet (10698506021)

Brake Rotor Hats Instruction Sheet (91031904)

Disc Brake Pads Guide/Document (10612511154)

Brake Pad Identification and Friction Surface Options Explained

AFCO 7250-0200 Specifications

KEY SPECS
MFG. Part #	7250-0200
Brand	AFCO
Position	Rear
Bolt Pattern	Multi: 5 on 4.5" \| 4.75" \| 5"
Rotor Diameter	11.75 Inch
Rotor Type	Vented
Caliper Pistons	One
Caliper Finish	Natural
Color	Natural
Parking Brake Provision	No
Rotor Shape	Round
Hardware Included	Yes
Front Rotor Included	No
Front Caliper Included	No
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Rear Rotor Included	Yes

GENERAL
Rotor Thickness	.81"
Thread Pitch	7/16"-20
Centerline of Holes	5.50"
Sold in Quantity	Kit
Notes	Includes rotors, rotor hats, caliper brackets, calipers, pads, and hardware.
Rotor Material Type	Cast Iron
