AFCO 7250-0120 GM 7.5 Inch Axle Brake Kit

AFCO 7250-0120 GM 7.5 Inch Axle Brake Kit
In Stock
Ships FREE
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Next
Details
Bolt Pattern:
5 on 4.75"
Rotor Diameter:
11.63 Inch
Rotor Type:
Vented
Caliper Pistons:
Single
Caliper Finish:
Natural
MFG. Part #:
7250-0120
Rotor Thickness:
.78"
Rotor Shape:
Round
Rotor I.D.:
2.78"
Rotor Backspace:
1.75"
Hardware Included:
Yes
Sold in Quantity:
Set
Notes:
Includes rotors, calipers, pad spacers, pads, hardware, and caliper brackets.
Rotor Material Type:
Cast Iron
Info
These rear disc brake kits allow you to simply bolt disk brakes onto your 7.5" GM rearend. Includes two bolt-on caliper brackets, two vented rotors, two new single-piston GM Metric calipers and hardware. Has 5 x 4-3/4" bolt pattern.
Minor fitting to axle housing may be required.
Kit includes:
- 11-5/8" one-piece vented iron rotors
- Caliper brackets
- Metric calipers, 2-1/2" pistons
- 10mm - 1.5 inlet
- Brake pad spacers

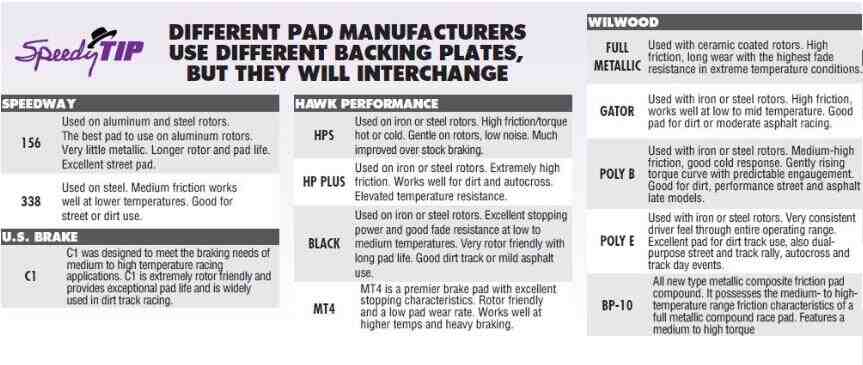

- AFCO C1 pads
- Medium-High temp rating
- Extremely rotor friendly, exceptional pad life
- Slide bolts
- All hardware included
Some parts are not legal for use in California or other states with similar laws/regulations
What's In The Kit
Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
-
Replacement 11-5/8 Rear Brake Rotor for GMPart # 91031043Qty x 2
-
7.5" GM Rear Caliper BracketsPart # 91031928-1Qty x 1
-
7.5" GM Bracket Bolt KitPart # 91031923-2Qty x 1
-
AFCO 6635003 GM Metric RH Caliper, 2-1/2 Inch BorePart # 1066635003Qty x 1
-
AFCO 6635004 GM Metric LH Caliper, 2-1/2 Inch BorePart # 1066635004Qty x 1
-
Brake Pad SPCR-Metric with .980Part # 91041909Qty x 2
-
AFCO 1251-1154 D154 1978-Up GM Metric PadsPart # 10612511154Qty x 1
-
Speedway GM Brake Caliper Slider Slide BoltPart # 8352300542Qty x 4
