AFCO 3870F/BNC Eliminator BNC Front Shock, 1993-02 Camaro/Firebird
AFCO 3870F/BNC Eliminator BNC Front Shock, 1993-02 Camaro/Firebird
1953 Chevy, 1955 Chevy, 58-02 Chevy, Twin Tube Shock Type, Aluminum Shock Body Material
In Stock
Ships FREE
Select Vehicle
AFCO 3870F/BNC Eliminator BNC Front Shock, 1993-02 Camaro/Firebird
Part # 1063870FBNC
$359.99
each
Add to Cart
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Details
Shock Type:
Twin Tube
Shock Body Material:
Aluminum
Shock Body Size:
Large Body
Shock Body Type:
Threaded
Shock Stroke Range:
7.00" to 7.99"
Shock Stroke:
7.00
Position:
Front
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
20.92"
Compressed Length:
14"
Extended Length Range:
20.00" to 20.99"
Compressed Length Range:
14.00" to 14.99"
Finish:
Anodized
Coil-Over Compatible:
Yes
MFG. Part #:
3870FBNC
Sold in Quantity:
Each
Info
See Application tab for specific fittment information.

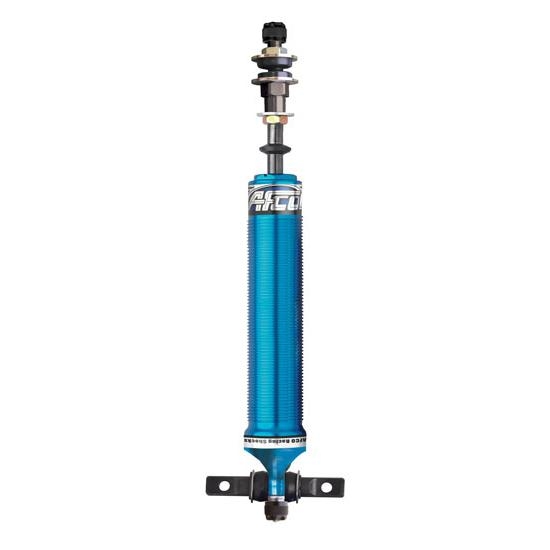

AFCOs Eliminator BNC Valving Twin Tube Double Adjustable Shocks eliminate bounce. The BNC shocks are designed to better absorb the impact of the car after a wheel stand launch. Works great in Stock, Super Stock, Outlaw 10.5, True Street, and other drag racing classes.
- 106-3870FBNC
- Body Mount: Tie Bar Mount w/ 2.625" bolt centers
- Shaft Mount: 1/2" I.D. Bearing (1.06" wide)
- Lightweight aluminum construction also helps dissipate heat
- Rebound settings are adjusted via a shaft-mounted knob with 32 clicks
- Compression settings are adjusted via a body-mounted know with 32 clicks
- Smooth, Ultra Low Friction rod guide
- Low resistance allows internals to function to their fullest potential
- Almost no "stiction" to interfere with putting the power down
- Coil-over Ready w/ purchase of kit 106-20135D
Can be converted to a coil-over with kit 106-20135D (sold separately, except 106-3870FBNC).
Item Details
7" Stroke, 13.50" Comp, 20.50" ExtCoil-over Kit Hardware Included
Application
- 106-3870FBNC
- '93-'02 Camaro/Firebird
Notes
- With the easy-to-use, repeatable "click" settings, this shock will give you unsurpassed traction. By allowing full control over both compression and rebound forces, Double Adjustable shocks give the tuner the ability to fine tune every aspect of the chassis movement to provide the ultimate in acceleration control and overall driveability.
Some parts are not legal for use in California or other states with similar laws/regulations
