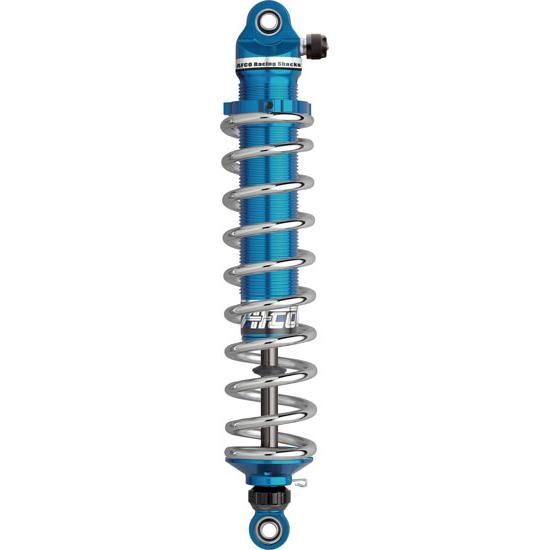

AFCO 3860BG Big Gun Rear Twin Tube Coil-Over Shock, 6 Inch Stroke

-10%

AFCO 3860BG Big Gun Rear Twin Tube Coil-Over Shock, 6 Inch Stroke
AFCO

|

#1063860BG

AFCO 3860BG Big Gun Rear Twin Tube Coil-Over Shock, 6 Inch Stroke

$494.99

/each

Factory Shipped

$549.99

Save $55.00


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, 14" Mounted Length, Twin Tube Shock Type

    See more details

    Key Specs

    PositionRear
    Mounted Length14"
    Shock AdjustabilityDouble Adjustable
    Shock TypeTwin Tube
    Shock Body MaterialAluminum
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    AFCO 3860BG Details

    The Big Gun Double Adjustabe T2 Twin Tube shocks are specifically valved for high horsepower applications. Both small tire and big tire cars can better control the “hit” to the tire with this series of shocks. Don’t “drive thru” your shocks with that big power — choose this series of shocks for the ultimate control off the line. Mount the shock upside-down for easier access to the rebound adjuster.
    • Double Adjustable - broad range of adjustment
    • Big Gun Valving - specifically valved for high horsepower applications
    • Great for BIG or SMALL tire door slammers
    • Shock of choice for 4-Link Dragsters
    • Large piston provides superior launch stability
    • Gas pressure eliminates cavitation and allows shock to recover faster
    • Body Mount: 1/2" I.D. Bearing (1.060" wide)
    • Shaft Mount: 1/2" I.D. Bearing (1.060" wide)
    Includes coil-over kit. Coil spring NOT included.

    Item Details

    12.9" Comp, 18.9" Ext, 12"-14" spring height
    14.75"-16.75" @ ride height

    Application

    Designed for the following classes:

    • Outlaw 10.5
    • Top Sportsman
    • Big Dog
    • Super Quick
    • Pro Mod
    • Pro 5.0
    • SSO
    • Drag Radial & Others

    Warranty Information

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    AFCO 3860BG Specifications

    KEY SPECS
    MFG. Part #3860BG
    BrandAFCO
    PositionRear
    Mounted Length14"
    Shock AdjustabilityDouble Adjustable
    Shock TypeTwin Tube
    Shock Body MaterialAluminum
    Shock Stroke6.00
    Upper Shock MountSpherical Rod End
    Lower Shock MountSpherical Rod End
    Height AdjustableYes
    FinishAnodized
    GENERAL
    Shock Body SizeLarge Body
    Shock Body TypeThreaded
    Compressed Length Range13.00" to 13.99"
    Compressed Length13"
    Extended Length Range18.00" to 18.99"
    Extended Length18.9"
    Coilover Kit IncludedYes
    Coilover Springs IncludedNo
    Sold in QuantityEach
    AdjustableYes

    Ratings & Reviews

    5

    1 Review

    Write A Review

    5

    1 reviews

    5

    1

    4

    0

    3

    0

    2

    0

    1

    0

    Filter by Ratings

    Great looking shocks, great reputation,

    5.0

    11 years ago

    JT427

    Tulsa, OK, USA

    Verified

    I haven't used these shocks yet but they were highly recommended for my hi HP application. With double adjustment these should help me control my launch. comes with a simple starting guide to get you started in the right direction, the rest is up to you to find the setting that is right for your set-up. If you have questions I'm sure Afco would be happy to help you.

    Would Recommend

    Showing 1 of 1 reviews

    Questions & Answers

    1 Question • 1 Answer

    What springs do I need for these

    by Ronald

    • 3 years ago

    1 answer

    View Answer

    1 of 1 questions shown
