#1063850C

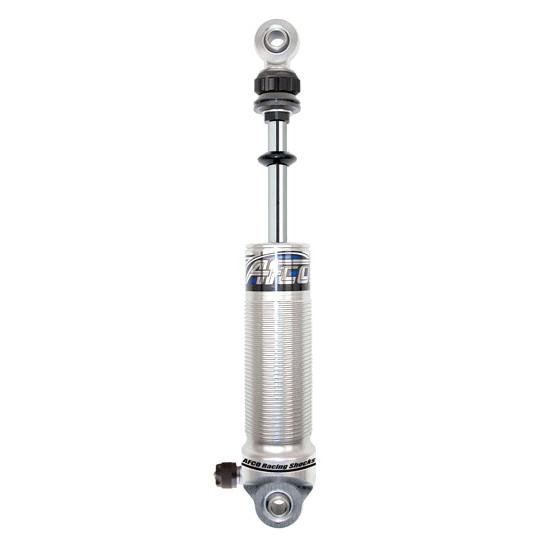

AFCO 3850C 5 Inch Double Adjustable Coilover Shock w/o Spring
$449.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before July 10th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Front Position, Twin Tube Shock Type
See more details
Key Specs
| Position | Front |
| Shock Adjustability | Double Adjustable |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Stroke | 5.00 |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 3850C Details
AFCO 3850C Details
No other street rod shock on the market can trump the quality or features of AFCOs R-Series Double-Adjustable Billet Aluminum Coilovers. You can now adjust both compression and rebound with a twist of your wrist. Double adjustments give the tuner the ability to fine tune every aspect of chassis movement to provide the ultimate in launch control, smooth ride, cornering ability, or a combination of all three for the best overall performance.
- Includes coil over kit10620135C
- Design combines sensitivity, response, control, performance, and a smooth ride
- Countless tuning options for complete control
- Machined aluminum body for long lasting good looks & lightweight performance
- Built-in coil-over mount & threaded body for easy ride height adjustment
- Every shock dyno-tested to ensure the highest quality standards
- Made in the USA
Has 1/2" I.D. x 1" wide Teflon lined rod ends (installed). Springs NOT included.
Item Details
Spring Height: 10" - 12"Ride Height: 13.75" - 14.75"
Charts
AFCO 3850C Specifications
AFCO 3850C Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 3850C |
| Brand | AFCO |
| Position | Front |
| Shock Adjustability | Double Adjustable |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Stroke | 5.00 |
| Upper Shock Mount | Spherical Rod End |
| Lower Shock Mount | Spherical Rod End |
| Finish | Anodized |
| GENERAL | |
| Speedway Motors Catalog Part # | 106-3850C |
| Shock Body Size | Large Body |
| Shock Body Type | Threaded |
| Compressed Length Range | 12.00" to 12.99" |
| Compressed Length | 12" |
| Extended Length Range | 16.00" to 16.99" |
| Extended Length | 16.9" |
| Coilover Kit Included | Yes |
| Coilover Springs Included | No |
| Sold in Quantity | Each |
| Adjustable | Yes |
