#1063850BGX

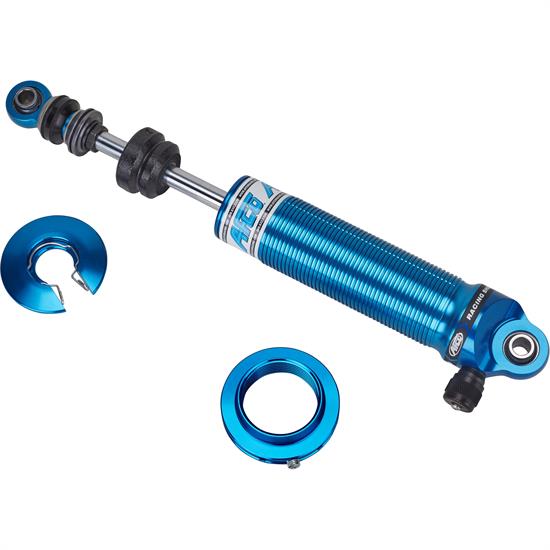

AFCO 3850BGX Aluminum Twin Tube Big Gun X Shock, 5 Inch Stroke
- These Double Adjustable Twin Tube shocks are specifically valved for high horsepower drag radial tire equipped applications
- Superior traction is achieved through a high flow piston that delivers consistent performance, pass after pass
- You can mount your AFCO shocks upside down for unsprung weight savings and ease in accessing the rebound adjuster
$471.99
/each
Factory Shipped
$549.99
Save $78.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 13" Mounted Length, 5.00 Shock Stroke
- These Double Adjustable Twin Tube shocks are specifically valved for high horsepower drag radial tire equipped applications
- Superior traction is achieved through a high flow piston that delivers consistent performance, pass after pass
- You can mount your AFCO shocks upside down for unsprung weight savings and ease in accessing the rebound adjuster
- They are double adjustable and have the broadest range of adjustment in industry
- Both the upper and lower shock mount have a spherical rod end
Key Specs
| Position | Front |
| Mounted Length | 13" |
| Shock Adjustability | Double Adjustable |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 3850BGX Details
AFCO 3850BGX Details
The Big Gun X Double Adjustable Twin Tube shocks are specifically valved for high horsepower drag radial tire equipped applications. Drag radial competitors require a unique valving package to control the rear suspension and properly apply the radial tire to the track. Superior traction is achieved through a high flow piston that delivers consistent performance, pass after pass. If you have 1,000 - 1,500 horsepower and are on a drag radial tire, this is the valving package you need to complement your race program. For quicker adjustments, mount your AFCO shocks upside down for unsprung weight savings and ease in accessing the rebound adjuster. Double Adjustable - broadest range of adjustment in industry. Big Gun X Valving - specifically valved for high horsepower applications: S/O, NPS, Ultra Street, and Quick 8.Great for BIG or SMALL tire door slammers. Rebuildable and revalvable. Body Mount: 1/2 I.D. Bearing (1 wide).Shaft Mount: 1/2 I.D. Bearing (1 wide).
Warranty Information
Click for details
Warranty Information
Click for details
AFCO 3850BGX Specifications
AFCO 3850BGX Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 3850BGX |
| Brand | AFCO |
| Position | Front |
| Mounted Length | 13" |
| Shock Adjustability | Double Adjustable |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Stroke | 5.00 |
| Upper Shock Mount | Spherical Rod End |
| Lower Shock Mount | Spherical Rod End |
| Height Adjustable | Yes |
| Finish | Anodized |
| GENERAL | |
| Shock Body Size | Large Body |
| Shock Body Type | Threaded |
| Compressed Length Range | 12.00" to 12.99" |
| Compressed Length | 12" |
| Extended Length Range | 16.00" to 16.99" |
| Extended Length | 16.9" |
| Coilover Kit Included | Yes |
| Coilover Springs Included | No |
| Sold in Quantity | Each |
| Adjustable | Yes |
