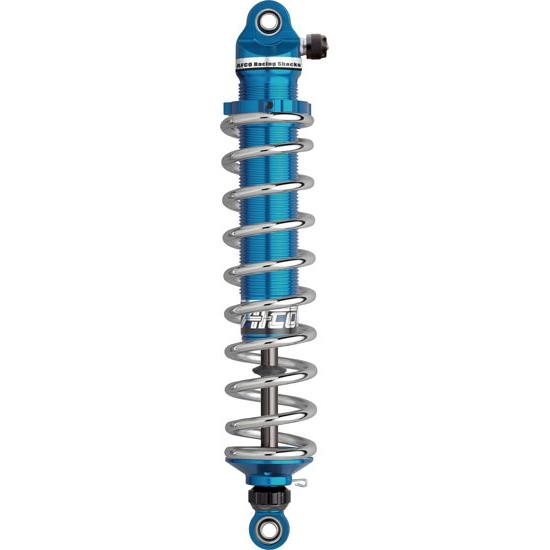

AFCO 3850BG Big Gun Rear Twin Tube Coil-Over Shock, 5 Inch Stroke

-11%

#1063850BG

AFCO 3850BG Big Gun Rear Twin Tube Coil-Over Shock, 5 Inch Stroke

These T2 Twin Tube shocks are specifically valved for high horsepower applications
Shock can be mounted upside-down for easier access to the rebound adjuster
It is great for BIG or SMALL tire door slammers

$485.99

/each

Factory Shipped

$549.99

Save $64.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 13" Mounted Length, 5.00 Shock Stroke

These T2 Twin Tube shocks are specifically valved for high horsepower applications
Shock can be mounted upside-down for easier access to the rebound adjuster
It is great for BIG or SMALL tire door slammers
The large piston provides superior launch stability
Gas pressure eliminates cavitation and allows shock to recover faster

See more details

Key Specs

Position	Front
Mounted Length	13"
Shock Adjustability	Double Adjustable
Shock Type	Twin Tube
Shock Body Material	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 3850BG Details

The Big Gun Double Adjustabe T2 Twin Tube shocks are specifically valved for high horsepower applications. Both small tire and big tire cars can better control the “hit” to the tire with this series of shocks. Don’t “drive thru” your shocks with that big power — choose this series of shocks for the ultimate control off the line. Mount the shock upside-down for easier access to the rebound adjuster.

Double Adjustable - broad range of adjustment
Big Gun Valving - specifically valved for high horsepower applications
Great for BIG or SMALL tire door slammers
Shock of choice for 4-Link Dragsters
Large piston provides superior launch stability
Gas pressure eliminates cavitation and allows shock to recover faster
Body Mount: 1/2" I.D. Bearing (1.060" wide)
Shaft Mount: 1/2" I.D. Bearing (1.060" wide)

Includes coil-over kit. Coil spring NOT included.

Item Details

11.9" Comp, 16.9" Ext, 10"-12" spring height
13.75"-14.75" @ ride height

Application

Designed for the following classes:

Outlaw 10.5
Top Sportsman
Big Dog
Super Quick
Pro Mod
Pro 5.0
SSO
Drag Radial & Others

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

AFCO 3850BG Specifications

KEY SPECS
MFG. Part #	3850BG
Brand	AFCO
Position	Front
Mounted Length	13"
Shock Adjustability	Double Adjustable
Shock Type	Twin Tube
Shock Body Material	Aluminum
Shock Stroke	5.00
Upper Shock Mount	Spherical Rod End
Lower Shock Mount	Spherical Rod End
Height Adjustable	Yes
Finish	Anodized

GENERAL
Shock Body Size	Large Body
Shock Body Type	Threaded
Compressed Length Range	12.00" to 12.99"
Compressed Length	12"
Extended Length Range	16.00" to 16.99"
Extended Length	16.9"
Coilover Kit Included	Yes
Coilover Springs Included	No
Sold in Quantity	Each
Adjustable	Yes
