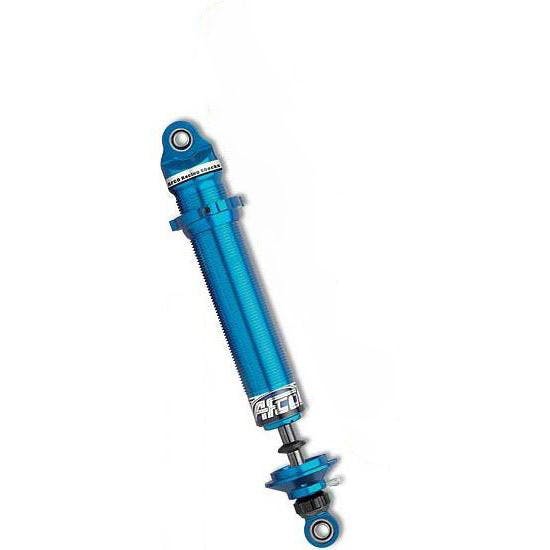

AFCO 3845 Eliminator Coil-Over Shock, Single Adjustable, 4 Inch Stroke

-14%

#1063845

AFCO 3845 Eliminator Coil-Over Shock, Single Adjustable, 4 Inch Stroke

Name: AFCO 3845 Eliminator Coil-Over Shock, Single Adjustable, 4 Inch Stroke
Brand: AFCO
SKU: 1063845
Price: 350.99 USD
Availability: InStock

Write a Review

1 Question

$350.99

/each

Factory Shipped

$409.99

Save $59.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, 12" Mounted Length, Twin Tube Shock Type

See more details

Key Specs

Position	Rear
Mounted Length	12"
Shock Adjustability	Single Adjustable
Shock Type	Twin Tube
Shock Body Material	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 3845 Details

AFCO Eliminator Twin Tube Adjustable shocks are built specifically for drag racing. Using advanced onboard diagnostics, AFCO developed the Eliminator Series to precisely control your race car at every point on the track. With the easy-to-use, repeatable "click" settings, this shock will give you unsurpassed traction.

Single (Rebound) Adjustable shocks are an economical alternative that gives you the ability to adjust rebound dampening control without affecting the compression dampening characteristics of the shock.

Rebound Adjustable with the "click" of a knob
Smooth, Ultra Low Friction rod guide
Low resistance allows internals to function to their fullest potential
Almost no "stiction" to interfere with putting the power down
Bearing mount ends reduce suspension binding

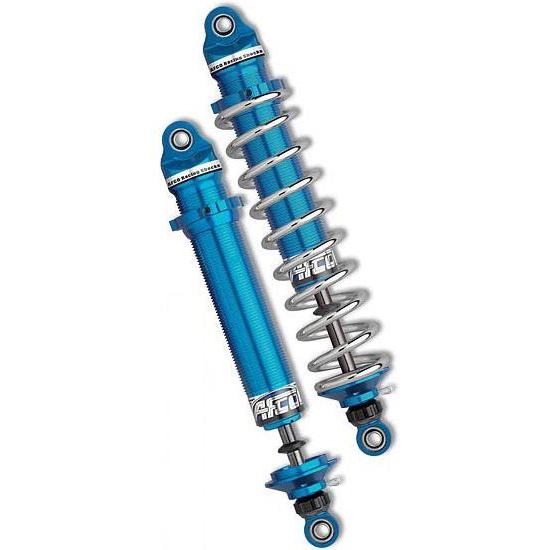

Includes all hardware to mount a 2-5/8" spring
Body Mount: 1/2" I.D. Bearing (1.060" wide)
Shaft Mount: 1/2" I.D. Bearing (1.060" wide)

Note: Coil spring NOT included.

Item Details

Single Adjustable
10.90" Comp, 14.90" Ext, 7-8" spring height
12.25"-13.25" @ ride height

Charts

How to Choose Shock Length (GIF)

Guides & Documents

Coilovers Technical Information (1063845)

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

AFCO 3845 Specifications

KEY SPECS
MFG. Part #	3845
Brand	AFCO
Position	Rear
Mounted Length	12"
Shock Adjustability	Single Adjustable
Shock Type	Twin Tube
Shock Body Material	Aluminum
Shock Stroke	4.00
Upper Shock Mount	Spherical Rod End
Lower Shock Mount	Spherical Rod End
Height Adjustable	Yes
Finish	Anodized

GENERAL
Shock Body Size	Large Body
Shock Body Type	Threaded
Compressed Length Range	11.00" to 11.99"
Compressed Length	11"
Extended Length Range	14.00" to 14.99"
Extended Length	14.9"
Coilover Kit Included	Yes
Coilover Springs Included	No
Sold in Quantity	Each
Adjustable	Yes

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

are these adjustable up and down 1 inch from 0

by ernie

• 8 years ago

1 answer

View Answer

1 of 1 questions shown
