AFCO 3770 Series Twin-Tube Double Adj. Shock-7", Standard Front
$489.99
/each
Factory Shipped
$549.99
Save $60.00
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
-10%
-10%
|
#1063770
$489.99
/each
Factory Shipped
$549.99
Save $60.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Shock Type | Twin Tube |
| Shock Adjustability | Double Adjustable |
| Shock Body Material | Aluminum |
| Body Diameter | 2.17" |
| Shock Body Type | Threaded |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCOs T2 Twin-Tube Adjustable shock has many of the ground breaking features of the proven M2 series to provide unmatched control and adjustability from a twin-tube package.
Low Friction
Ultra smooth black shafts, low friction rod guides, piston seals, and even the fluid port's contours all combine to ensure that the shock operates as freely as possible to give the shock the best response possible. Low friction operation not only benefits the ability to provide control, but also reduces heat buildup and provides more consistency.
Easy to Use and Accurate
The adjusters on the AFCO T2 are based on the popular M2 shock and specifically designed to make fast, precise, and repeatable changes. The knobs are 100% o-ring sealed from the elements and easy to grasp, even with muddy, greasy, or gloved hands. The easy-to-feel, spring loaded detents allow you to quickly change with a simple click.
Isolated Compression and Rebound Control
The T2's unique design allows for completely independent rebound and compression control. This gives you the ability to fine-tune for maximum control.
Swiv-Align Floating Spring Seat
The design of the high tech Swiv-Align spring seat removes nearly all side forces from the shaft and makes the T2's damping smoother and more consistent than other shocks without any added expense.
Low Friction
Ultra smooth black shafts, low friction rod guides, piston seals, and even the fluid port's contours all combine to ensure that the shock operates as freely as possible to give the shock the best response possible. Low friction operation not only benefits the ability to provide control, but also reduces heat buildup and provides more consistency.
Easy to Use and Accurate
The adjusters on the AFCO T2 are based on the popular M2 shock and specifically designed to make fast, precise, and repeatable changes. The knobs are 100% o-ring sealed from the elements and easy to grasp, even with muddy, greasy, or gloved hands. The easy-to-feel, spring loaded detents allow you to quickly change with a simple click.
Isolated Compression and Rebound Control
The T2's unique design allows for completely independent rebound and compression control. This gives you the ability to fine-tune for maximum control.
Swiv-Align Floating Spring Seat
The design of the high tech Swiv-Align spring seat removes nearly all side forces from the shaft and makes the T2's damping smoother and more consistent than other shocks without any added expense.
Application

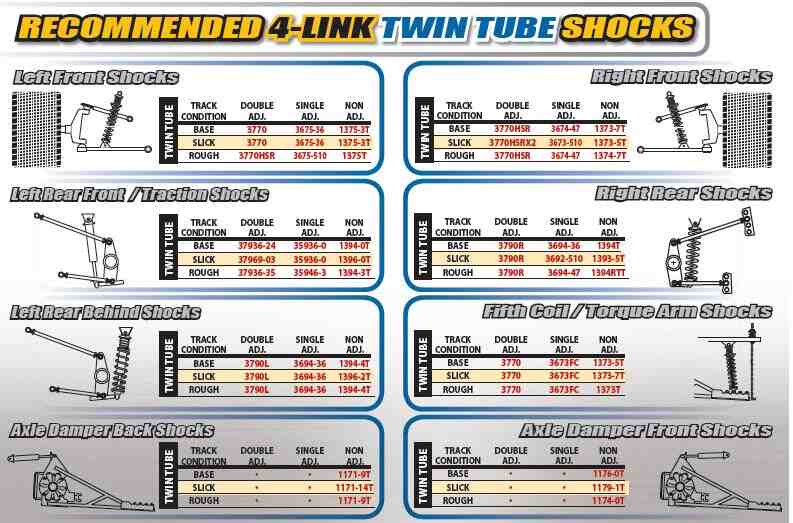

Charts
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 3770 |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Double Adjustable |
| Shock Body Material | Aluminum |
| Body Diameter | 2.17" |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Position | Front |
| Stroke | 9" |
| Compression Valving | Custom |
| Rebound Valving | Custom |
| Mount Position | Stock Mount |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20.1" |
| Compressed Length Range | 13.00" to 13.99" |
| Finish | Anodized |
| Compressed Length | 13.18" |
| Gas Charged | Yes |
| GENERAL | |
| Rebuildable | Yes |
| Shock Stroke | 7.00 |
| Coil-Over Compatible | Yes |
| Bolt Hole Circle | 0.5" |
| Sold in Quantity | Each |
