Product Summary

Rear Position, Double Adjustable Shock Adjustability

  • Big Gun Valving - specifically valved for high horsepower applications
  • Better Controlled "hit" to the tire with small and big tire applications
  • Double adjustable for compression and rebound adjustment
  • Shock of choice for 4-link dragsters
  • Gas pressure shock eliminates cavitation for quick shock recovery

Key Specs

PositionRear
Shock AdjustabilityDouble Adjustable
Shock TypeMono Tube
Shock Body MaterialAluminum
Shock Stroke7.00

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

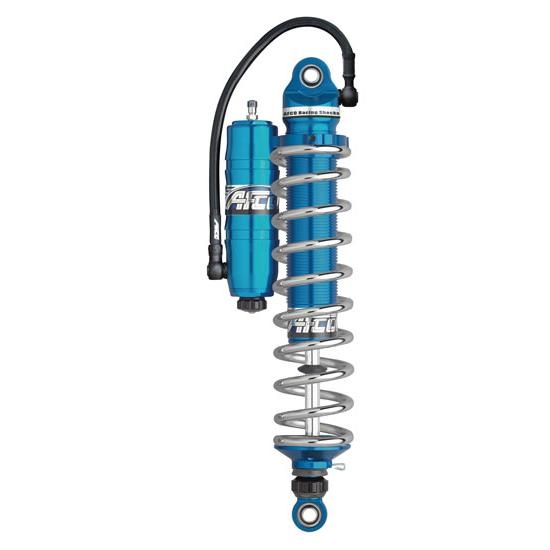

AFCO 3270BG Details

The Big Gun Series Double Adjustable Monotube shocks are specifically valved for high horsepower applications. Both small tire and big tire cars can better control the “hit” to the tire with this series of shocks. Don’t “drive thru” your shocks with that big power — choose this series of shocks for the ultimate control off the line. Mount the shock upside-down for easier access to the rebound adjuster.

  • Body Mount:  1/2" I.D. Bearing (1.060" wide)
  • Shaft Mount:  1/2" I.D. Bearing (1.060" wide)
  • Double Adjustable - broad range of adjustment
  • Big Gun Valving - specifically valved for high horsepower applications
  • Great for BIG or SMALL tire door slammers
  • Shock of choice for 4-Link Dragsters
  • Large piston provides superior launch stability
  • Gas pressure eliminates cavitation and allows shock to recover faster

Includes coil-over kit. Coil spring NOT included.

Item Details

13.2" Comp, 20.2" Ext, 14" spring height
15.20"-18.50" @ ride height

Application

Designed for the following classes:

  • Outlaw 10.5
  • Top Sportsman
  • Big Dog
  • Super Quick
  • Pro Mod
  • Pro 5.0
  • SSO
  • Drag Radial
  • Top Dragsters & Others

AFCO 3270BG Specifications

KEY SPECS
MFG. Part #3270BG
BrandAFCO
PositionRear
Shock AdjustabilityDouble Adjustable
Shock TypeMono Tube
Shock Body MaterialAluminum
Shock Stroke7.00
Upper Shock MountSpherical Rod End
Lower Shock MountSpherical Rod End
FinishAnodized
GENERAL
Speedway Motors Catalog Part #106-3270BG
Shock Body SizeLarge Body
Shock Body TypeThreaded
Compressed Length Range14.00" to 14.99"
Compressed Length14.2"
Extended Length Range21.00" to 21.99"
Extended Length21.2"
Coilover Kit IncludedYes
Coilover Springs IncludedNo
Sold in QuantityEach
AdjustableYes
