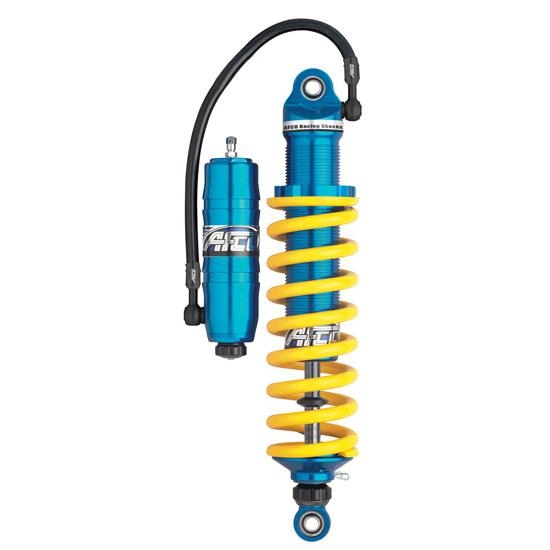

AFCO 3250-1 Swing Arm Dragster Shock, Canister Series, 5 Inch Stroke
AFCO 3250-1 Swing Arm Dragster Shock, Canister Series, 5 Inch Stroke

AFCO 3250-1 Swing Arm Dragster Shock, Canister Series, 5 Inch Stroke

Universal Fit, Mono Tube Shock Type, Aluminum Shock Body Material, Large Body Shock Body Size

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 3250-1 Swing Arm Dragster Shock, Canister Series, 5 Inch Stroke
AFCO 3250-1 Swing Arm Dragster Shock, Canister Series, 5 Inch Stroke
Zoomed In Image
We estimate this item will ship on or before September 21st.
Part # 10632501
Save 12%
$609.99
$699.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 0 business days for AFCO to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Shock Type:
Mono Tube
Shock Body Material:
Aluminum
Shock Body Size:
Large Body
Shock Body Type:
Threaded
Shock Stroke Range:
5.00" to 5.99"
Shock Stroke:
5.00
Mount Position:
Swing
Upper Shock Mount:
Spherical Rod End
Lower Shock Mount:
Spherical Rod End
Finish:
Anodized
External Canister:
Yes
MFG. Part #:
32501
Sold in Quantity:
Each

Info

These Big Gun Series Double Adjustable Monotube coil-overs are specifically valved for high horsepower applications. Both small tire and big tire cars can better control the “hit” to the tire with this series of shocks. Don’t “drive thru” your shocks with that big power — choose this shock for the ultimate control off the line. Mount the shock upside-down for easier access to the rebound adjuster.
  • Double Adjustable - broad range of adjustment
  • Big Gun Valving - specifically valved for high horsepower applications
  • Great for BIG or SMALL tire door slammers
  • Shock of choice for Swing Arm Dragsters
  • Large piston provides superior launch stability
  • Gas pressure eliminates cavitation and allows shock to recover faster
  • Body Mount:  1/2" I.D. Bearing (1.060" wide)
  • Shaft Mount:  1/2" I.D. Bearing (1.060" wide)
Includes coil-over kit. Coil spring NOT included.

Item Details

11.20" Comp, 16.2" Ext, 10"-12" spring height
13.20"-14.50" @ ride height

Application

Designed for the following classes:

  • Outlaw 10.5
  • Top Sportsman
  • Big Dog
  • Super Quick
  • Pro Mod
  • Pro 5.0
  • SSO
  • Drag Radial
  • Top Dragsters & Others
Some parts are not legal for use in California or other states with similar laws/regulations
