$338.99
$299.99

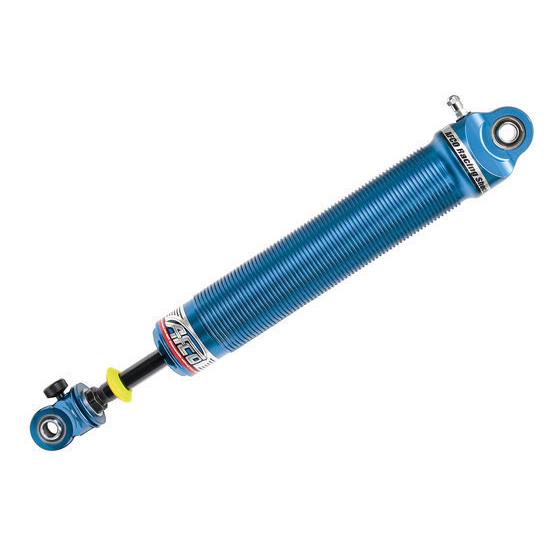

AFCO 2694-36Z 26 Series Big Threaded Gas Shock, 9 Inch, Comp 4/Reb 3-6
AFCO 2694-36Z 26 Series Big Threaded Gas Shock, 9 Inch, Comp 4/Reb 3-6

AFCO 2694-36Z 26 Series Big Threaded Gas Shock, 9 Inch, Comp 4/Reb 3-6

Sprint Car, Mono Tube Shock Type, Single Adjustable Shock Adjustability, 4 Compression Valving

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Limited Qty
Phoenix, AZ -
Select your vehicle to verify fitment.
Select a vehicle to verify fitment.
Select Vehicle
AFCO 2694-36Z 26 Series Big Threaded Gas Shock, 9 Inch, Comp 4/Reb 3-6
AFCO 2694-36Z 26 Series Big Threaded Gas Shock, 9 Inch, Comp 4/Reb 3-6
AFCO 2694-36Z 26 Series Big Threaded Gas Shock, 9 Inch, Comp 4/Reb 3-6
X
AFCO 2694-36Z 26 Series Big Threaded Gas Shock, 9 Inch, Comp 4/Reb 3-6
Zoomed In Image
Part # 106269436Z
Save 11%
$299.99
$338.99
each
Call to Order
Add to Buildlist
Click to Login
Compare
Details
Reviews
Q&A

Details

Shock Type:
Mono Tube
Shock Adjustability:
Single Adjustable
Shock Body Material:
Aluminum
Shock Body Type:
Threaded
Shock Body Size:
Large Body
Shock Stroke Range:
9.00" to 9.99"
Compression Valving:
4
Rebound Valving:
3 - 6
Shock Stroke:
9.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length Range:
23.00" to 23.99"
Extended Length:
23.35"
Compressed Length Range:
15.00" to 15.99"
Compressed Length:
15.4"
Schrader Valve:
Yes
Finish:
Anodized
Coil-Over Compatible:
Yes
Rebuildable:
Yes
MFG. Part #:
26943-6Z
Sold in Quantity:
Each
Gas Charged:
Yes

Info

  • Aluminum threaded large body shock
  • Rebound adjustable
  • Schrader valve/floating piston design for gas pressure
  • Late Model application
  • Compressed Length: 15.40"
  • Extended Length: 23.35"

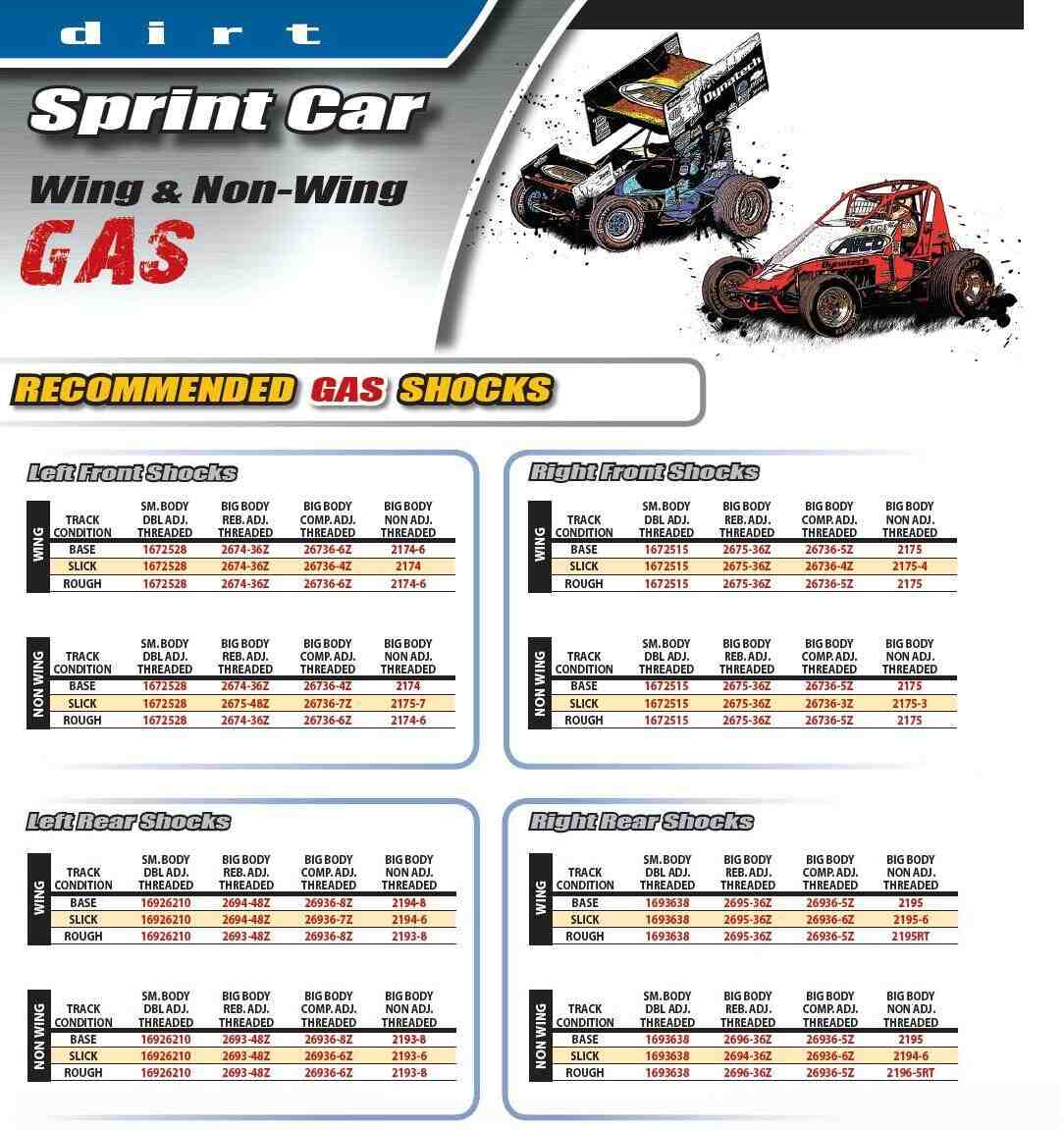

Dirt Sprint Wing and Non-Wing Gas Shock Chart (Link)

Application

Sprint Car Non-Wing - Dirt
  • Recommended Gas Shocks - Big Body Rebound Adjustable Threaded
    • Right Rear
      • Slick Track Condition

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
