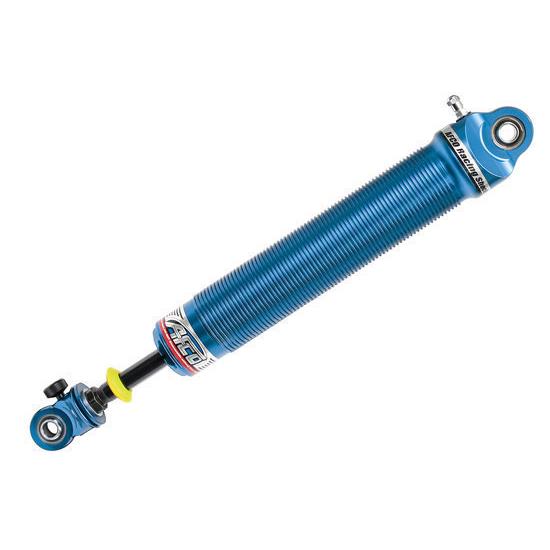

AFCO 2693-48Z 26 Series Big Threaded Gas Shock, 9 Inch, Comp 3/Reb 4-8
AFCO 2693-48Z 26 Series Big Threaded Gas Shock, 9 Inch, Comp 3/Reb 4-8
AFCO

|

#106269348Z

AFCO 2693-48Z 26 Series Big Threaded Gas Shock, 9 Inch, Comp 3/Reb 4-8

$394.99

/each

Factory Shipped

$399.99

Save $5.00


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Dirt Late Model, Pavement Late Model, Sprint Car

    See more details

    Key Specs

    Shock TypeMono Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialAluminum
    Shock Body TypeThreaded
    Shock Body SizeLarge Body
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    AFCO 26934-8Z Details

    • Aluminum threaded large body shock
    • Rebound adjustable
    • Schrader valve/floating piston design for gas pressure
    • Late Model application
    • Compressed Length: 15.40"
    • Extended Length: 23.35"

    Application

    • Sprint Car Wing - Dirt
      • Recommended Gas Shocks - Big Body Rebound Adjustable Threaded
        • Left Rear
          • Rough Track Condition
    • Sprint Car Non-Wing - Dirt
      • Recommended Gas Shocks - Big Body Rebound Adjustable Threaded
        • Left Rear
          • Base, Slick, Rough Track Condition

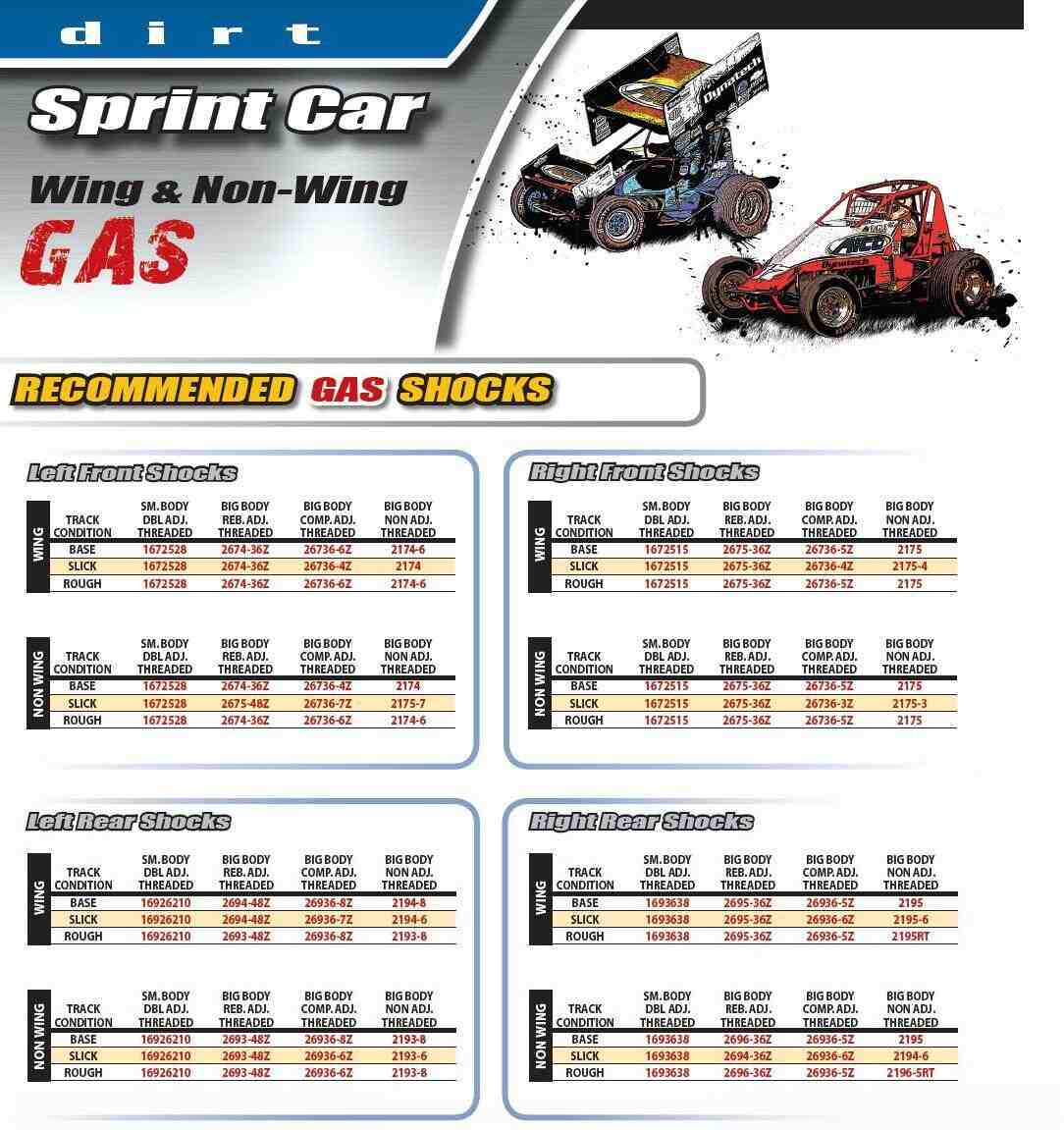

    Charts

    Warranty Information

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    AFCO 26934-8Z Specifications

    KEY SPECS
    MFG. Part #26934-8Z
    BrandAFCO
    Shock TypeMono Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialAluminum
    Shock Body TypeThreaded
    Shock Body SizeLarge Body
    Shock Stroke Range9.00" to 9.99"
    Compression Valving3
    Rebound Valving4 - 8
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range23.00" to 23.99"
    Extended Length23.35"
    Compressed Length Range15.00" to 15.99"
    FinishAnodized
    Compressed Length15.4"
    Gas ChargedYes
    GENERAL
    RebuildableYes
    Schrader ValveYes
    Shock Stroke9.00
    Coil-Over CompatibleYes
    Sold in QuantityEach
