Product Summary

Dirt Late Model, Pavement Late Model, Sprint Car

    See more details

    Key Specs

    Shock TypeMono Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialAluminum
    Shock Body TypeThreaded
    Shock Body SizeLarge Body
    See more specs

    Need To Know

    Quick and Easy Returns

    Return Policy

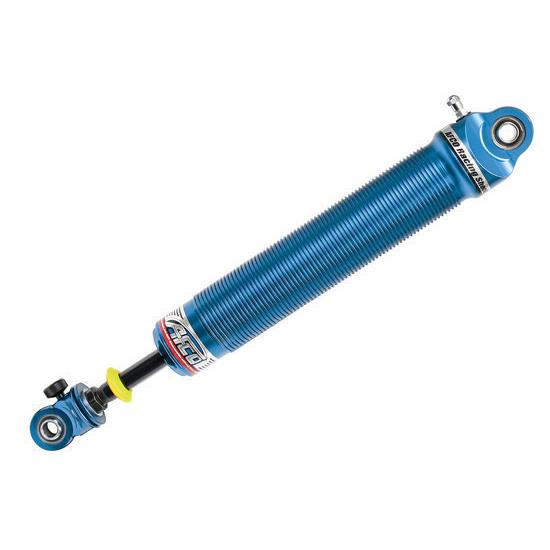

    AFCO 26739-14Z Details

    AFCO innovation provides racers with more options. The M2 Single adjustable shock brings the race proven advantages of the M2 Mono-Tube Shock to a non-canister single adjustable design. Simply put, AFCO's M2 Single gives your racecar more sensitivity, more adjustment range, more versatility, and more traction!

    • Compressed Length: 13.00"
    • Extended Length: 18.91"
    • Pavement Late Model

    AFCO M2 26 Series Aluminum Body - Single Adjustable Shocks. Rebound Adjustable. 7 Inch Stroke.

    All AFCO M2 shocks are 100% dyno tested, rebuildable and revalvable. Includes detailed tuning guide.

    • Internal Bladder
      • Just like the more expensive M2 Double Adjustable, the M2 Single incorporates a gas charged bladder design to provide lightning fast response to high frequency shaft movement while maintaining exceptional low speed dampening control.
    • Low Friction
      • All the M2's low friction components are utilized in the single adjustable model to provide consistent fade free performance and allow the key functions of the shock to work at their maximum effictiveness.
    • Swiv-Align Floating Spring Seat
      • The design of the high tech Swiv-Align spring seat removes nearly all side forces from the shaft and makes the M2's damping smoother and more consistent than other shocks without any added expense.
    • Adjustability
      • The M2's unique design allows for completely independent control with absolutely no change in the fixed valve portion of the shock. The M2 Single Adjustable uses the shaft-mounted adjuster knob in rebound adjustable configurations.

    • Internal Bladder
      • Just like the more expensive M2 Double Adjustable, the M2 Single incorporates a gas charged bladder design to provide lightning fast response to high frequency shaft movement while maintaining exceptional low speed dampening control.
    • Low Friction
      • All the M2's low friction components are utilized in the single adjustable model to provide consistent fade free performance and allow the key functions of the shock to work at their maximum effictiveness.
    • Swiv-Align Floating Spring Seat
      • The design of the high tech Swiv-Align spring seat removes nearly all side forces from the shaft and makes the M2's damping smoother and more consistent than other shocks without any added expense.
    • Adjustability
      • The M2's unique design allows for completely independent control with absolutely no change in the fixed valve portion of the shock. The M2 Single Adjustable uses the shaft-mounted adjuster knob in rebound adjustable configurations.

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    AFCO 26739-14Z Specifications

    KEY SPECS
    MFG. Part #26739-14Z
    BrandAFCO
    Shock TypeMono Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialAluminum
    Shock Body TypeThreaded
    Shock Body SizeLarge Body
    Shock Stroke Range7.00" to 7.99"
    Compression Valving3
    Rebound Valving9 - 14
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range18.00" to 18.99"
    Extended Length18.91"
    Compressed Length Range13.00" to 13.99"
    Compressed Length13"
    FinishAnodized
    Gas ChargedYes
    GENERAL
    Shock Stroke7.00
    Schrader ValveYes
    Coil-Over CompatibleYes
    RebuildableYes
    Sold in QuantityEach
