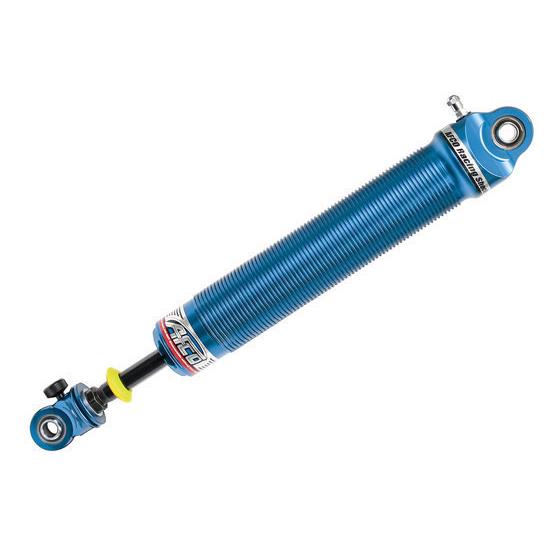

AFCO 2673-510 26 Series Big Threaded Adj. Shock 7 In., Comp 3/Reb 5-10

#1062673510

AFCO 2673-510 26 Series Big Threaded Adj. Shock 7 In., Comp 3/Reb 5-10

Name: AFCO 2673-510 26 Series Big Threaded Adj. Shock 7 In., Comp 3/Reb 5-10
Brand: AFCO
SKU: 1062673510
Price: 394.99 USD
Availability: InStock

Write a Review

Ask a Question

$394.99

/each

Factory Shipped

$399.99

Save $5.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Dirt Late Model, Pavement Late Model, Sprint Car

See more details

Key Specs

Shock Type	Mono Tube
Shock Adjustability	Single Adjustable
Shock Body Material	Aluminum
Shock Body Type	Threaded
Shock Body Size	Large Body

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

Internal Bladder
- Just like the more expensive M2 Double Adjustable, the M2 Single incorporates a gas charged bladder design to provide lightning fast response to high frequency shaft movement while maintaining exceptional low speed dampening control.
Low Friction
- All the M2's low friction components are utilized in the single adjustable model to provide consistent fade free performance and allow the key functions of the shock to work at their maximum effictiveness.
Swiv-Align Floating Spring Seat
- The design of the high tech Swiv-Align spring seat removes nearly all side forces from the shaft and makes the M2’s damping smoother and more consistent than other shocks without any added expense.
Adjustability
- The M2's unique design allows for completely independent control with absolutely no change in the fixed valve portion of the shock. The M2 Single Adjustable uses the shaft-mounted adjuster knob in rebound adjustable configurations.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

AFCO 26735-10 Details

AFCO innovation provides racers with more options. The M2 Single adjustable shock brings the race proven advantages of the M2 Mono-Tube Shock to a non-canister single adjustable design. Simply put, AFCO's M2 Single gives your racecar more sensitivity, more adjustment range, more versatility, and more traction!

Compressed Length: 13.00"
Extended Length: 18.91"
Dirt/Pavement Late Model

AFCO M2 26 Series Aluminum Body - Single Adjustable Shocks. Rebound Adjustable. 7 Inch Stroke.

All AFCO M2 shocks are 100% dyno tested, rebuildable and revalvable. Includes detailed tuning guide.

Internal Bladder
- Just like the more expensive M2 Double Adjustable, the M2 Single incorporates a gas charged bladder design to provide lightning fast response to high frequency shaft movement while maintaining exceptional low speed dampening control.
Low Friction
- All the M2's low friction components are utilized in the single adjustable model to provide consistent fade free performance and allow the key functions of the shock to work at their maximum effictiveness.
Swiv-Align Floating Spring Seat
- The design of the high tech Swiv-Align spring seat removes nearly all side forces from the shaft and makes the M2's damping smoother and more consistent than other shocks without any added expense.
Adjustability
- The M2's unique design allows for completely independent control with absolutely no change in the fixed valve portion of the shock. The M2 Single Adjustable uses the shaft-mounted adjuster knob in rebound adjustable configurations.

Internal Bladder
- Just like the more expensive M2 Double Adjustable, the M2 Single incorporates a gas charged bladder design to provide lightning fast response to high frequency shaft movement while maintaining exceptional low speed dampening control.
Low Friction
- All the M2's low friction components are utilized in the single adjustable model to provide consistent fade free performance and allow the key functions of the shock to work at their maximum effictiveness.
Swiv-Align Floating Spring Seat
- The design of the high tech Swiv-Align spring seat removes nearly all side forces from the shaft and makes the M2's damping smoother and more consistent than other shocks without any added expense.
Adjustability
- The M2's unique design allows for completely independent control with absolutely no change in the fixed valve portion of the shock. The M2 Single Adjustable uses the shaft-mounted adjuster knob in rebound adjustable configurations.

Application

Dirt Late Model/Crate Late Model
Recommended Swing Arm & 4-Link Gas Shock
- Right Front
  - Slick Track Condition

Charts

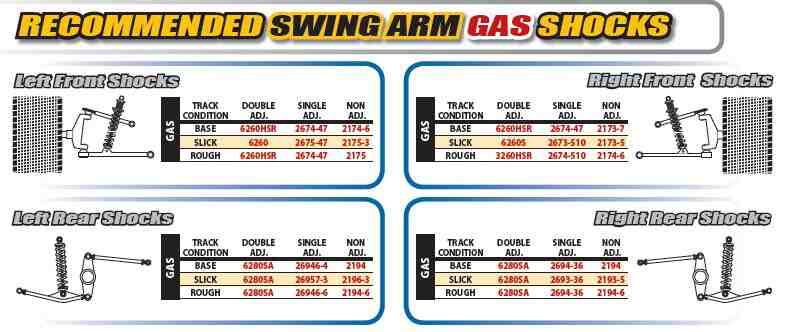

Late Model Swing Arm Gas Shock Chart (JPG)

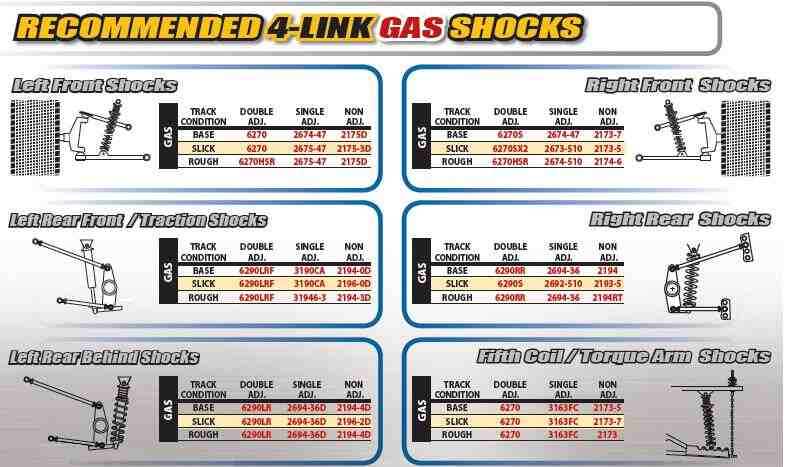

Late Model 4-Link Gas Shock Chart (JPG)

Guides & Documents

Shocks Technical Information (1062673510)

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

AFCO 26735-10 Specifications

KEY SPECS
MFG. Part #	26735-10
Brand	AFCO
Shock Type	Mono Tube
Shock Adjustability	Single Adjustable
Shock Body Material	Aluminum
Shock Body Type	Threaded
Shock Body Size	Large Body
Shock Stroke Range	7.00" to 7.99"
Compression Valving	3
Rebound Valving	5 - 10
Upper Shock Mount	1/2" Spherical Rod End
Lower Shock Mount	1/2" Spherical Rod End
Extended Length Range	18.00" to 18.99"
Extended Length	18.91"
Compressed Length Range	13.00" to 13.99"
Finish	Anodized
Compressed Length	13"
Gas Charged	Yes

GENERAL
Rebuildable	Yes
Schrader Valve	Yes
Shock Stroke	7.00
Coil-Over Compatible	Yes
Sold in Quantity	Each
