#106267347DZ

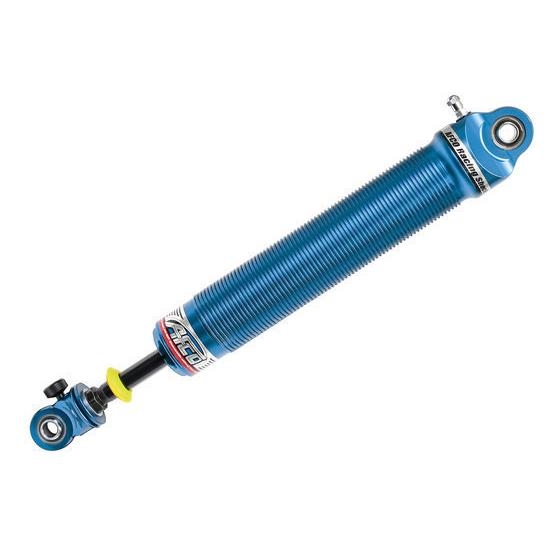

AFCO 26 Series Big Body Threaded Reb Adj. Shock, 7 In, Comp/Reb: 3/4-7
$394.99
/each
Factory Shipped
$399.99
Save $5.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Shock Type | Mono Tube |
| Shock Adjustability | Single Adjustable |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 2673-47DZ Details
AFCO 2673-47DZ Details
AFCO innovation provides racers with more options. The M2 Single adjustable shock brings the race proven advantages of the M2 Mono-Tube Shock to a non-canister single adjustable design. Simply put, AFCO's M2 Single gives your racecar more sensitivity, more adjustment range, more versatility, and more traction!
- Compressed Length: 13.00"
- Extended Length: 18.91"
- Dirt/Pavement Late Model
AFCO M2 26 Series Aluminum Body - Single Adjustable Shocks. Rebound Adjustable. 7 Inch Stroke.
All AFCO M2 shocks are 100% dyno tested, rebuildable and revalvable. Includes detailed tuning guide.
- Internal Bladder
- Just like the more expensive M2 Double Adjustable, the M2 Single incorporates a gas charged bladder design to provide lightning fast response to high frequency shaft movement while maintaining exceptional low speed dampening control.
- Low Friction
- All the M2's low friction components are utilized in the single adjustable model to provide consistent fade free performance and allow the key functions of the shock to work at their maximum effictiveness.
- Swiv-Align Floating Spring Seat
- The design of the high tech Swiv-Align spring seat removes nearly all side forces from the shaft and makes the M2's damping smoother and more consistent than other shocks without any added expense.
- Adjustability
- The M2's unique design allows for completely independent control with absolutely no change in the fixed valve portion of the shock. The M2 Single Adjustable uses the shaft-mounted adjuster knob in rebound adjustable configurations.
- Internal Bladder
- Just like the more expensive M2 Double Adjustable, the M2 Single incorporates a gas charged bladder design to provide lightning fast response to high frequency shaft movement while maintaining exceptional low speed dampening control.
- Low Friction
- All the M2's low friction components are utilized in the single adjustable model to provide consistent fade free performance and allow the key functions of the shock to work at their maximum effictiveness.
- Swiv-Align Floating Spring Seat
- The design of the high tech Swiv-Align spring seat removes nearly all side forces from the shaft and makes the M2's damping smoother and more consistent than other shocks without any added expense.
- Adjustability
- The M2's unique design allows for completely independent control with absolutely no change in the fixed valve portion of the shock. The M2 Single Adjustable uses the shaft-mounted adjuster knob in rebound adjustable configurations.
Warranty Information
Click for details
Warranty Information
Click for details
AFCO 2673-47DZ Specifications
AFCO 2673-47DZ Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2673-47DZ |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Adjustability | Single Adjustable |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 3 |
| Rebound Valving | 4 - 7 |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Gas Charged | Yes |
| GENERAL | |
| Rebuildable | Yes |
| Schrader Valve | Yes |
| Shock Stroke | 7.00 |
| Coil-Over Compatible | Yes |
| Sold in Quantity | Each |
