#106259446DZ

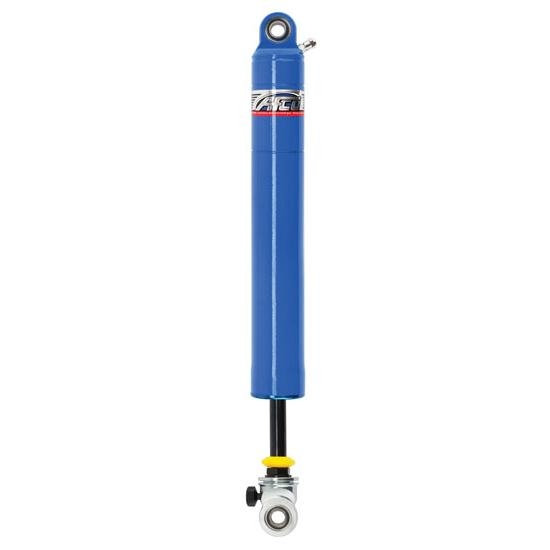

AFCO 2594-46DZ Steel Adj Shock w Schrader Valve 9 Inch, Comp 4/Reb 4-6
$399.99
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
|
#106259446DZ
$399.99
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCOs 25 Series Mono-Tube steel body gas shocks have all the sophistication of deflective disc technology along with the rebound adjustable and Schrader valve features. The 25 series gas shocks use a floating piston design. The 25 series is rebound adjustable and comes equipped with a Schrader valve to allow you to quickly vary the shocks gas pressure according to track conditions. They are completely owner rebuildable and serviceable, and are available in straight or split valve codes.
WARNING:
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 2594-46DZ |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 4 |
| Rebound Valving | 4 - 6 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 24.00" to 24.99" |
| Extended Length | 24.21" |
| Compressed Length Range | 15.00" to 15.99" |
| Finish | Powder Coated |
| Compressed Length | 15.3" |
| Gas Charged | Yes |
| GENERAL | |
| Rebuildable | Yes |
| Schrader Valve | Yes |
| Shock Stroke | 9.00 |
| Sold in Quantity | Each |
