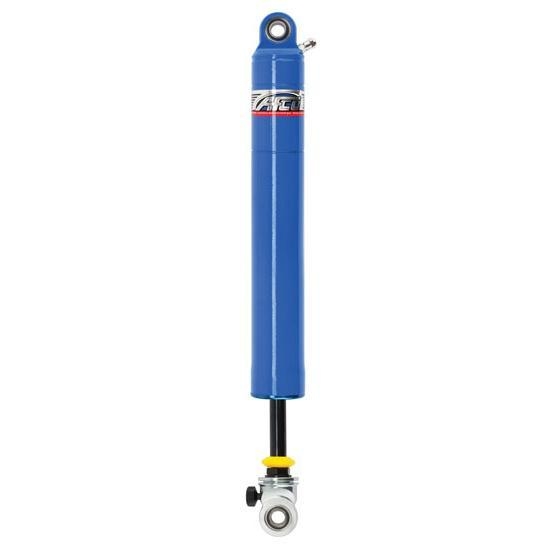

AFCO 2594-36Z Steel Adj Shock w/ Schrader Valve 9 Inch, Comp 4/Reb 3-6
AFCO 2594-36Z Steel Adj Shock w/ Schrader Valve 9 Inch, Comp 4/Reb 3-6
AFCO

|

#106259436Z

AFCO 2594-36Z Steel Adj Shock w/ Schrader Valve 9 Inch, Comp 4/Reb 3-6

$399.99

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Modified, Sport Mod, Stock Car, Mono Tube Shock Type

    See more details

    Key Specs

    Shock TypeMono Tube
    Shock Body MaterialSteel
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    Shock Stroke Range9.00" to 9.99"
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    AFCO 2594-36Z Details

    AFCOs 25 Series mono-tube steel body gas shocks have all the sophistication of deflective disc technology along with the rebound adjustable and Schrader valve features. The 25 series gas shocks use a floating piston design. The 25 series is rebound adjustable and comes equipped with a Schrader valve to allow you to quickly vary the shocks gas pressure according to track conditions. They are completely owner rebuildable and serviceable, and are available in straight or split valve codes.

    • Gas pressure rebound adjustable for easy valve changes
    • Schrader valve allows tuning with gas pressure
    • Street Stock/Super Stock applications
    • Coil-over and non coil-over compatible

    Item Details

    Comp/Rebound: 4/3-6
    15.30" Compressed
    23.21" Extended

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    AFCO 2594-36Z Specifications

    KEY SPECS
    MFG. Part #2594-36Z
    BrandAFCO
    Shock TypeMono Tube
    Shock Body MaterialSteel
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    Shock Stroke Range9.00" to 9.99"
    Compression Valving4
    Rebound Valving3 - 6
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range24.00" to 24.99"
    Extended Length24.21"
    Compressed Length Range15.00" to 15.99"
    FinishPowder Coated
    Compressed Length15.3"
    Gas ChargedYes
    GENERAL
    RebuildableYes
    Schrader ValveYes
    Shock Stroke9.00
    Sold in QuantityEach
