-14%
-14%
|
#10624992D
$213.99
/each
In Stock
$249.99
Save $36.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Modified, Stock Car, Mono Tube Shock Type, Gas Charged
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns

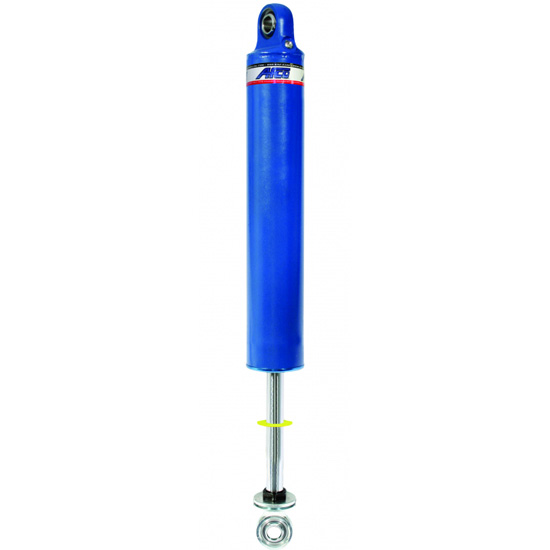

Return PolicyAFCOs sophisticated 24 Series steel body gas shocks feature deflective disc technology in an economical, rules-friendly, non-adjustable package. These mono-tube shocks are sure to be the answer for any racer under constraints to experience the superb handling of gas-charged shocks.
IMCA Approved.
Specs
WARNING:
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 2499-2D |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Position | Rear Left |
| Compression Valving | 9 |
| Rebound Valving | 2 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.85" |
| Compressed Length Range | 14.00" to 14.99" |
| Finish | Powder Coated |
| Compressed Length | 14.95" |
| Gas Charged | Yes |
| GENERAL | |
| Schrader Valve | No |
| Shock Stroke | 9.00 |
| Coil-Over Compatible | Yes |
| Valve Positions | 9 compression - 2 rebound |
| Bushing Material | Steel |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
| Notes | IMCA legal |
| Sold in Quantity | Each |
1 Question • 2 Answers
Will this "hold up" the left rear for high bank and slick track. Does it have enough gas pressure?
by Mid55
• 7 years ago
2 answers
View Answers
1 of 1 questions shown
