#10624992

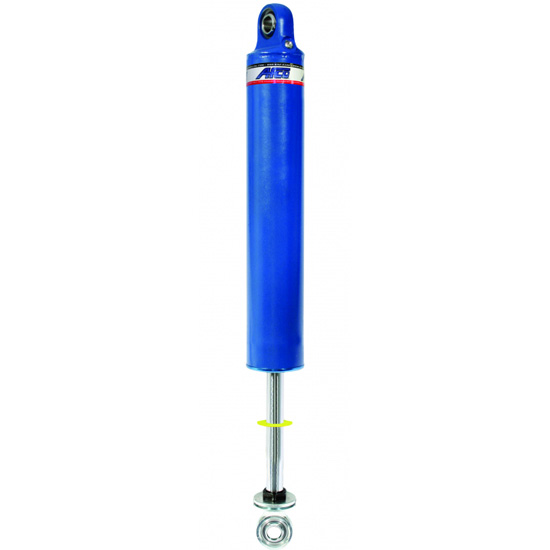

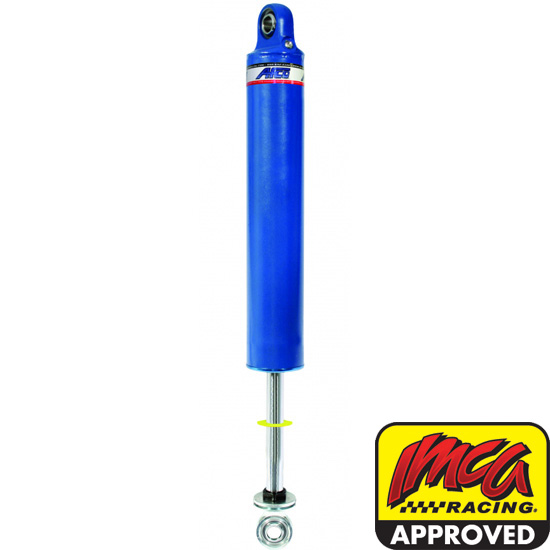

AFCO 2499-2 24 Series Steel Body Gas Shock-9 Inch Stroke, Comp 9/Reb 2
$224.99
/each
Factory Shipped
$249.99
Save $25.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 2499-2 Details
AFCO 2499-2 Details
Speedway Motors is proud to be the first to announce the release of AFCO's newly designed IMCA approved steel body gas shocks. These new shocks have all the sophistication of our deflective disc technology wrapped up in an economical & rule friendly, non-adjustable package. These are sure to be the answer for any racer under constraints to experience gas shocks.
The new Steel Body 24 Series Gas Shock uses a Floating Piston Design. They are rebuildable and serviceable through an authorized Afco shock rebuild center, and are available in straight or split valve codes. Coil-over and non coil-over compatible.
The choice is clear, let the new AFCO Steel Mono-Tube Gas Shocks handle your car all the way to victory lane!
Application
- Dirt Modifieds

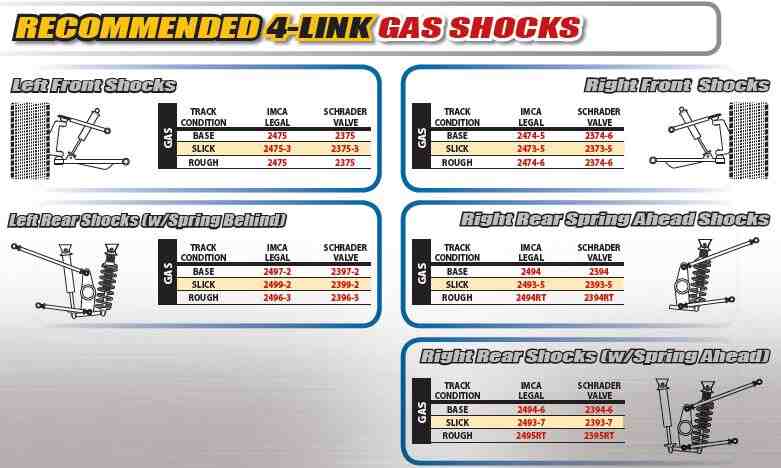

- Recommended 4-Link Gas Shocks-IMCA Legal
- Left Rear Shocks (w/Spring Behind)
- Slick Track Condition
- Left Rear Shocks (w/Spring Behind)
Charts
Guides & Documents
Warranty Information
Click for details
Warranty Information
Click for details
AFCO 2499-2 Specifications
AFCO 2499-2 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2499-2 |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 9 |
| Rebound Valving | 2 |
| Upper Shock Mount | 1/2" Bushed Eyelet |
| Lower Shock Mount | 1/2" Bushed Eyelet |
| Extended Length Range | 22.00" to 22.99" |
| Extended Length | 22.85" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.95" |
| Finish | Powder Coated |
| Gas Charged | Yes |
| GENERAL | |
| Shock Stroke | 9.00 |
| Schrader Valve | No |
| Coil-Over Compatible | Yes |
| Valve Positions | 9 compression - 2 rebound |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Notes | IMCA legal |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
