Black Friday BONUS! Get a FREE $20 Gift Card With Your $200 Order*.
PROMO: BLKOUT. Offer Valid 11/21/17 - 11/26/17.
Add to Cart
$174.99
$119.99

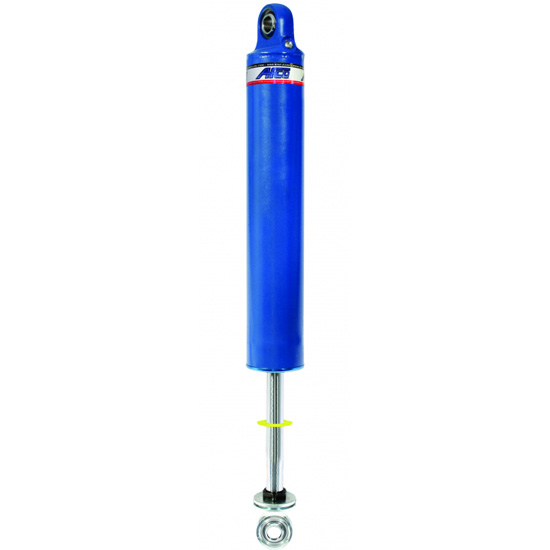

AFCO 2499-1D 24 Series Steel Gas Shock-9 Inch, Left Rear, Comp 9/Reb 1
AFCO 2499-1D 24 Series Steel Gas Shock-9 Inch, Left Rear, Comp 9/Reb 1

AFCO 2499-1D 24 Series Steel Gas Shock-9 Inch, Left Rear, Comp 9/Reb 1

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
AFCO 2499-1D 24 Series Steel Gas Shock-9 Inch, Left Rear, Comp 9/Reb 1
AFCO 2499-1D 24 Series Steel Gas Shock-9 Inch, Left Rear, Comp 9/Reb 1
Zoomed In Image
Part # 10624991D
Save 31%
$119.99
$174.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Shock Type:
Mono Tube
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Shock Stroke Range:
9.00" to 9.99"
Shock Stroke:
9.00
Position:
Rear Left
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
23.85"
Compressed Length:
14.95"
Extended Length Range:
23.00" to 23.99"
Compressed Length Range:
14.00" to 14.99"
Compression Valving:
9
Rebound Valving:
1
Schrader Valve:
No
Finish:
Powder Coated
Coil-Over Compatible:
Yes
Body Diameter:
2.00"
Valve Positions:
9 compression - 1 rebound
Bushing Material:
Steel
MFG. Part #:
2499-1D
Sold in Quantity:
Each
Notes:
IMCA Legal
Inside Diameter:
46 mm
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No
Gas Charged:
Yes

Info

AFCO's sophisticated 24 Series steel body gas shocks feature deflective disc technology in an economical, rules-friendly, non-adjustable package. These mono-tube shocks are sure to be the answer for any racer under constraints to experience the superb handling of gas-charged shocks.

  • IMCA Racing approved
  • Mono-tube steel body
  • Gas pressure floating piston design
  • Deflective disc technology
  • Performance at its best on fast or rough tracks
  • Grooved for coil-over applications
  • Street Stock/Super Stock applications (left rear)
  • Rebuildable and serviceable through an authorized AFCO shock rebuild center

Specs


Some parts are not legal for use in California or other states with similar laws/regulations
