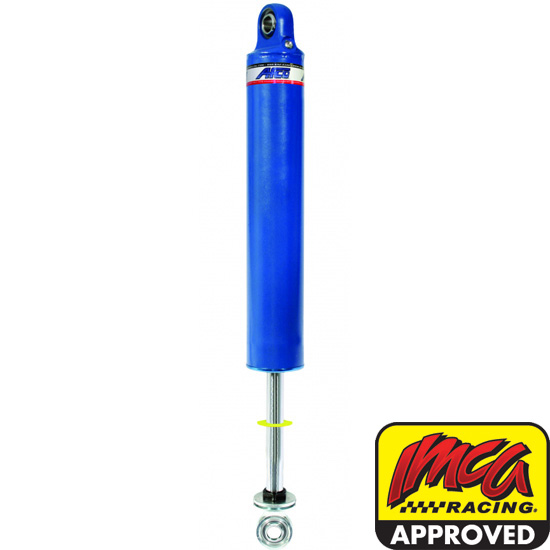

AFCO 2496-0D 24 Series Steel Gas L Rear Shock 9 In Stroke Comp 6/Reb 0
$209.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 7th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Stock Car, Mono Tube Shock Type, Gas Charged
See more details
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 2496-0D Details
AFCO 2496-0D Details
Speedway Motors is proud to be the first to announce the release of AFCO's newly designed IMCA approved steel body gas shocks. These new shocks have all the sophistication of our deflective disc technology wrapped up in an economical & rule friendly, non-adjustable package. These are sure to be the answer for any racer under constraints to experience gas shocks.
The new Steel Body 24 Series Gas Shock uses a Floating Piston Design. They are rebuildable and serviceable through an authorized Afco shock rebuild center, and are available in straight or split valve codes. Coil-over and non coil-over compatible.
The choice is clear, let the new AFCO Steel Mono-Tube Gas Shocks handle your car all the way to victory lane!
AFCO 2496-0D Specifications
AFCO 2496-0D Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2496-0D |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Position | Rear Left |
| Compression Valving | 6 |
| Rebound Valving | 0 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.85" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.95" |
| Finish | Powder Coated |
| Coil-Over Compatible | Yes |
| Gas Charged | Yes |
| GENERAL | |
| Speedway Motors Catalog Part # | 106-24960D |
| Shock Stroke | 9.00 |
| Schrader Valve | No |
| Body Diameter | 2.00" |
| Valve Positions | 6 compression - 0 rebound |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Notes | IMCA legal |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
